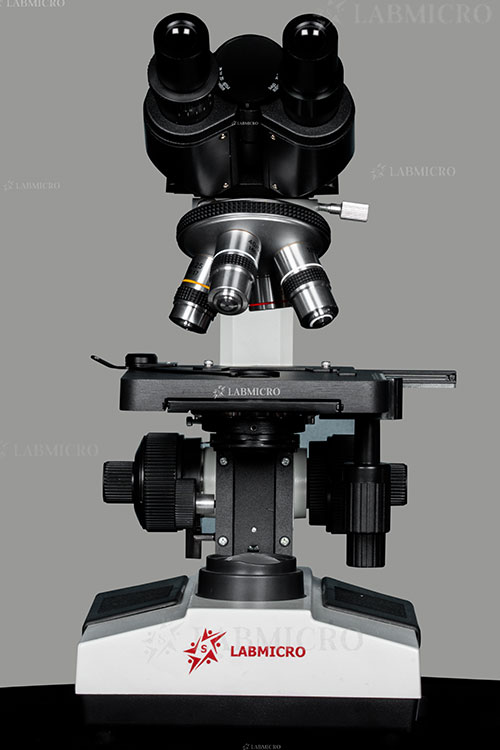

Classic, high-profile biological microscope with beautiful appearance, excellent performance and high-definition imaging.
It is suitable for biological and medical fields, and can be used for health and pathology education and professional research, clinical experiments and routine medical tests in health institutions, laboratories, research institutes and universities.
Yes I'm Interested DownloadTechnical Specifications
| Specification | Details |
|---|---|
| Model No. | SLV-20i |
| Optical System | Finity Optical System |
| Viewing Head | Black Sliding Binocular Head, 45° Inclined, 360° Rotatable |
| Eyepiece | Wide Field WF 10X/18MM with diopter adjustment |

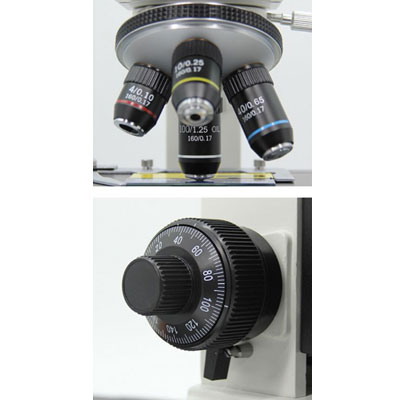

| Nosepiece | Quadruple, Forward Type with Positive Click Stops |

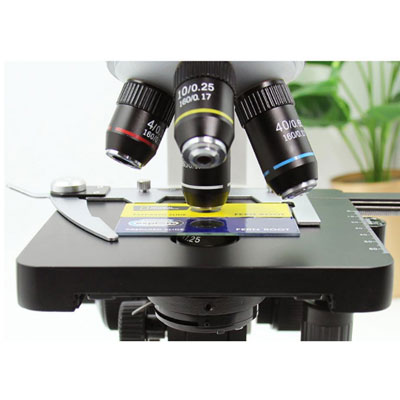

| Objectives | Achromatic Objective 4X, 10X, 40X(SL), 100X (oil) |
| Specimen Stage | Double Layer Mechanical Stage, 140×140 mm, Moving Range 50×75 mm |
| Focusing System | Low Position Coaxial Coarse & Fine Focusing |
| Fine Focusing Scale | 0.002 mm |
| Other Focusing Features | Tension Adjustment, Up Limit Stop |
| Condenser | N.A. 1.25 Abbe Condenser, Iris Diaphragm, with Filter Holder |
| Illumination | Built-in LED, Brightness Adjustable |
| Filters | Blue, Yellow, Green |
| Adapter | C-Mount 1.0x |
| Optional Accessories | Camera Attachment, Phase Contrast Attachment, Dark Field Attachment, Pointer Attachment |
