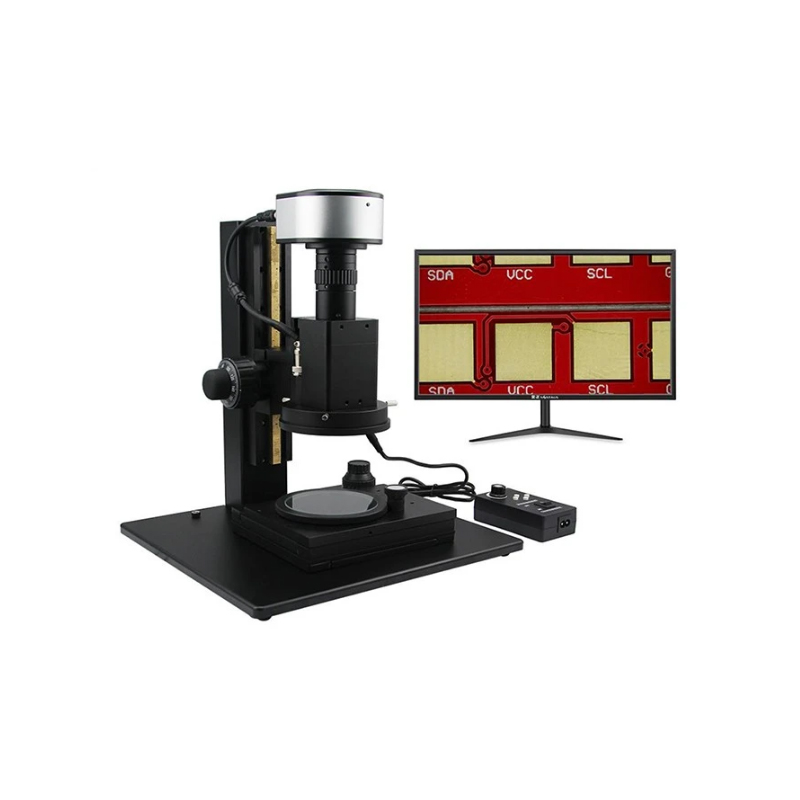

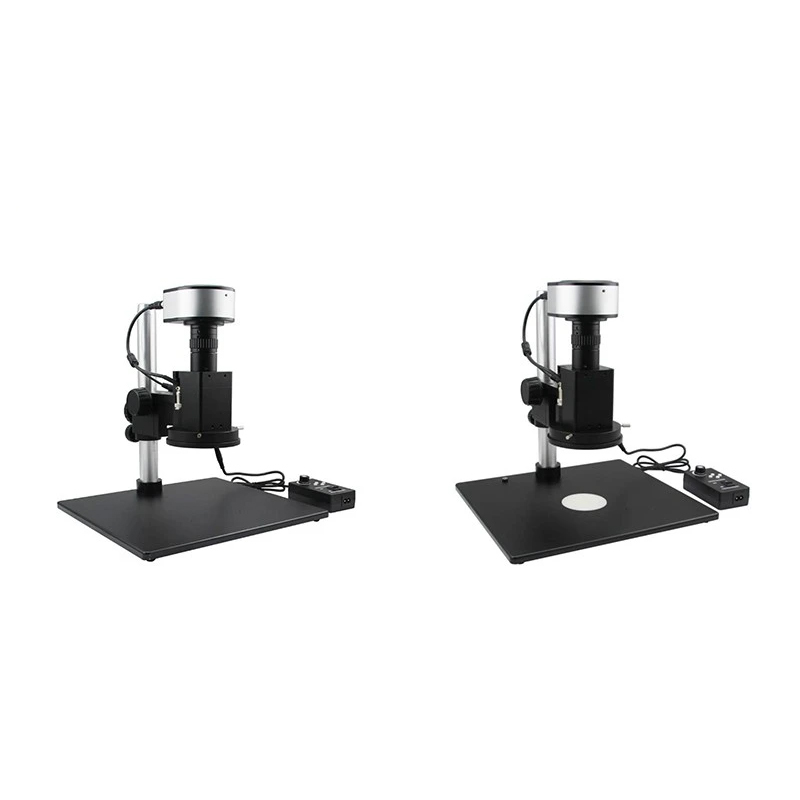

Calibration Free Motorized Zoom Video Microscope
MODEL NO. AMSIPRA-1

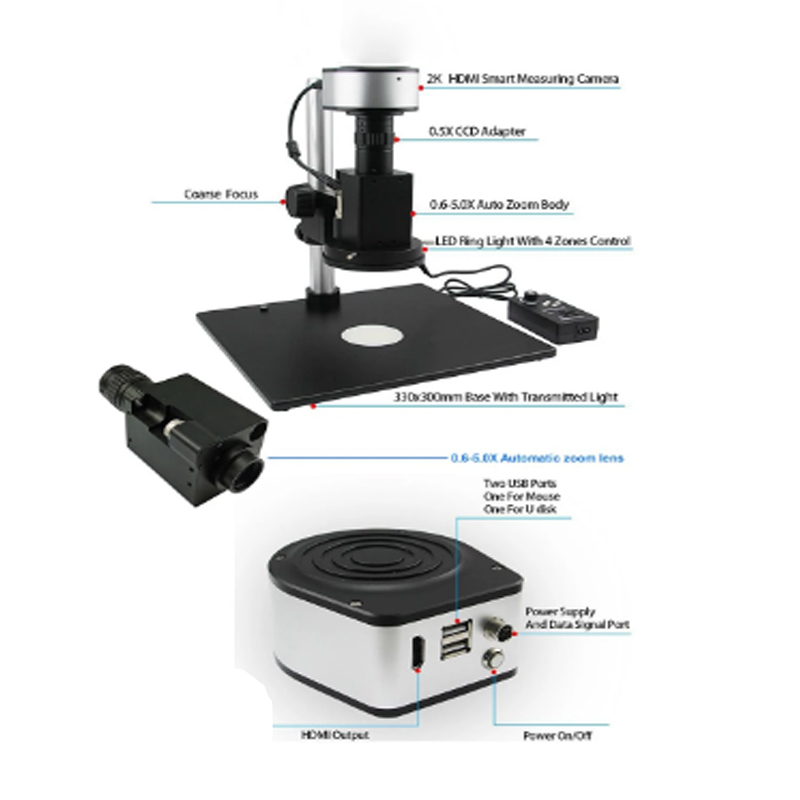

| Standard | Optional | |
|---|---|---|
| Optical Magnification | 0.3–2.5X (0.6–5.0X Zoom Body With 0.5X CCD Mount) | 0.6–5.0X (0.6–5.0X Zoom Body With 1.0X CCD Mount) |
| FOV | 24×13.5–2.88×1.62mm | 12×6.75–1.44×0.81mm |
| Total Magnification | 14–120X (Based On 15.6 Inch Monitor) | 28–240X (Based On 15.6 Inch Monitor) |
| Working Distance | 86mm | |
| Resolution | 1920×1080 | |
| Frame | 60fps | |
| Sensor | 1/2" | |
| Pixel Size | 3.75×3.75µm | |
| Output | High Resolution HDMI Output | |
| Light Source | LED Ring Light With 4 Zones Control | |
| Measuring Function | Support Measuring of Point, Line, Parallel Lines, Circle, Arc, Angle, Rectangle, Polygon Etc. | |
| Save Function | Take Photo and Video to U Disk |
| Magnification | Working Distance | FOV (Field of View) | Depth of Field | NA | Resolution |
|---|---|---|---|---|---|
| 0.6× | 85.6 mm | 12 × 6.75 mm | 3.12 mm | 0.021 mm | 0.016 |
| 0.8× | 85.6 mm | 9 × 5.06 mm | 2.04 mm | 0.025 mm | 0.014 |
| 1× | 85.6 mm | 7.2 × 4.05 mm | 1.21 mm | 0.033 mm | 0.010 |
| 2× | 85.6 mm | 3.6 × 2.03 mm | 0.38 mm | 0.053 mm | 0.006 |
| 3× | 85.6 mm | 2.4 × 1.35 mm | 0.20 mm | 0.067 mm | 0.005 |
| 4× | 85.6 mm | 1.8 × 1.01 mm | 0.13 mm | 0.079 mm | 0.004 |
| 5× | 85.6 mm | 1.5 × 0.81 mm | 0.09 mm | 0.090 mm | 0.004 |

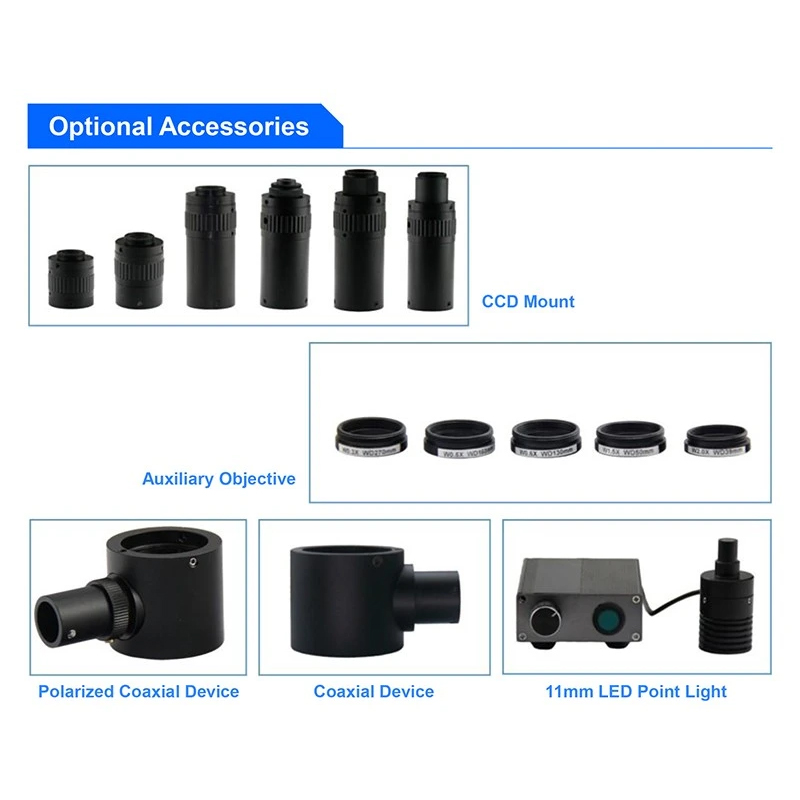

| Category | Item | Specification / Notes |
|---|---|---|
| C-Mount | 0.3× CCD Mount | Standard C-mount |
| 0.45× CCD Mount | Standard C-mount | |
| 0.5× CCD Mount | Standard C-mount | |
| 0.67× CCD Mount | Standard C-mount | |
| 0.75× CCD Mount | Standard C-mount | |
| 1× CCD Mount | Standard C-mount | |
| 1.5× CCD Mount | Standard C-mount | |
| 2× CCD Mount | Standard C-mount | |
| 3× CCD Mount | Standard C-mount | |
| Auxiliary Objective | 0.3× Auxiliary Objective | Use with 1× objective, Working Distance: 270 mm |
| 0.38× Auxiliary Objective | Use with 1× objective, Working Distance: 205 mm | |
| 0.5× Auxiliary Objective | Use with 1× objective, Working Distance: 160 mm | |
| 0.6× Auxiliary Objective | Use with 1× objective, Working Distance: 130 mm | |
| 0.75× Auxiliary Objective | Use with 1× objective, Working Distance: 105 mm | |
| 1.5× Auxiliary Objective | Use with 1× objective, Working Distance: 50 mm | |
| 2.0× Auxiliary Objective | Use with 1× objective, Working Distance: 39 mm | |
| Other Accessories | Coaxial Device | Use with φ11 mm LED Point Light |
| Polarized Coaxial Device | Use with φ11 mm LED Point Light | |
| 11 mm LED Point Light | 3 W, brightness adjustment |
