Inverted Metallurgical Microscope SLV-40M

Optical System Components

• Super Wide Field Eyepiece

  • Seidentopf Trinocular Head Inclined 30°

  • Interpupillary Distance: 48~76mm

  • Light Split Switch: E100:P0 / E20:P80

  • WF10x/22mm, With Micrometer

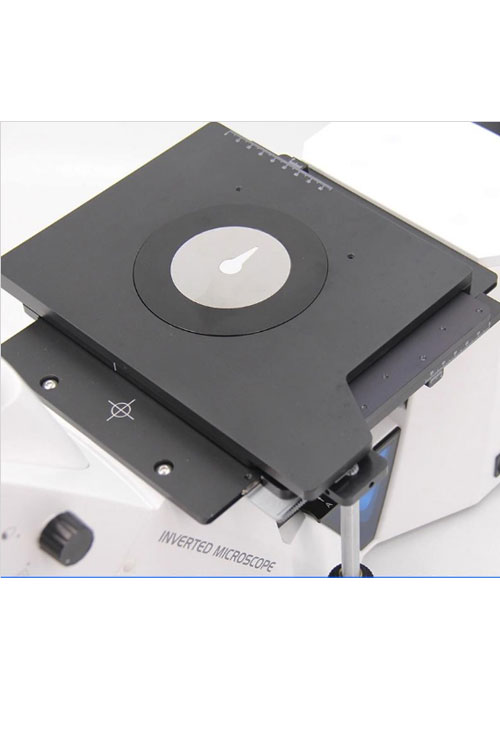

• Working Stage

  • Size: 210×180mm

  • Moving Range: 50×50mm

• Illumination

  • Koehler Illumination Halogen 12V/50W

  • Input Voltage: 100V~240V

• Polarizing

  • Analyzer & Polarizer for simple polarizing observation




    Specification Table

    Items	SLV-40M Inverted Metallurgical Microscope	SLV-40M	SLV-40M-BD
    Head	Seidentopf Trinocular Head Inclined 30°, Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●
    Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●
    	WF10x/22mm, With Micrometre X-0.1mm*180 Div / Y-Single Line	●	●
    	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○
    	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○
    Nosepiece	Quintuple	●	-
    	Quadruple (for Bright & Dark Field)	-	●
    Metallurgical LWD Infinity Plan BF (Bright Field) Semi-APO Objectives	LMPLan FL 5x/0.15, W.D.=21.0mm	●	○
    	LMPlan FL 10x/0.3, W.D.=20.0mm	●	○
    	LMPlan FL 20x/0.40 W.D.=15.0mm	●	○
    	LMPlan FL 50x/0.55 W.D.=10.0mm	●	○
    	LMPlan FL 50x/0.75 W.D.=4.25mm	○	○
    	LMPlan FL 100x/0.85 W.D.=3.0mm	○	○
    	LPL 5x/0.13BD, W.D.=16.04mm	-	●
    Metallurgical LWD Infinity Plan BD (Bright & Dark Field) Objectives	LPL 10x/0.25BD, W.D.=18.48mm	-	●
    	LPL 20x/0.40BD, W.D.=8.35mm	-	●
    	LPL 50x/0.70BD, W.D.=1.95mm	-	●
    Working Stage	Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Dia.110mm	●	●
    	Round Plate With Oval Hole	○	○
    Focusing	Coaxial Coarse & Fine Focusing. Coarse Travel: 10mm. Fine Division: 0.002mm. Fine Stroke Per Rotation: 0.2mm	●	●
    Polarizing	Analyzer + Polarizer Set	●	●
    Illumination	Koehler Halogen 12V/50W, Input Voltage 100V~240V	●	●
    	Koehler LED 5W, Input Voltage 100V~240V	○	○
    Power	ECO Auto Power Off System. Auto on/off detection. Manually switchable.	○	○
    Filter	Blue, Dia.34mm	●	●
    	Green, Dia.34mm	○	○
    	Amber, Dia.34mm	○	○
    	Grey, Dia.34mm	○	○
    Adapter	SLR Adapter for Canon, 100% Light for Camera Port	○	○
    	SLR Adapter for Nikon, 100% Light for Camera Port	○	○
    	C-Mount 0.5x, Focus Adjustable	○	○
    	C-Mount 0.75x, Focus Adjustable	○	○
    	C-Mount 1.0x, Focus Adjustable	○	○
    	Digital Eyepiece Camera Adapter (Dia. 23.2mm/25mm)	○	○
    Package	Packing Size: 660mm × 590mm × 325mm
    Weight	Gross: 17 kg, Net: 12.5 kg



    Note: "●" = Standard Outfits, "○" = Optional Accessories
