| Component | Specification |
|---|---|
| Model No. | SLV-40i |
| Optical System | Infinity Optical System |
| Viewing Head | Seidentopf Trinocular Head Inclined 45°, Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 |

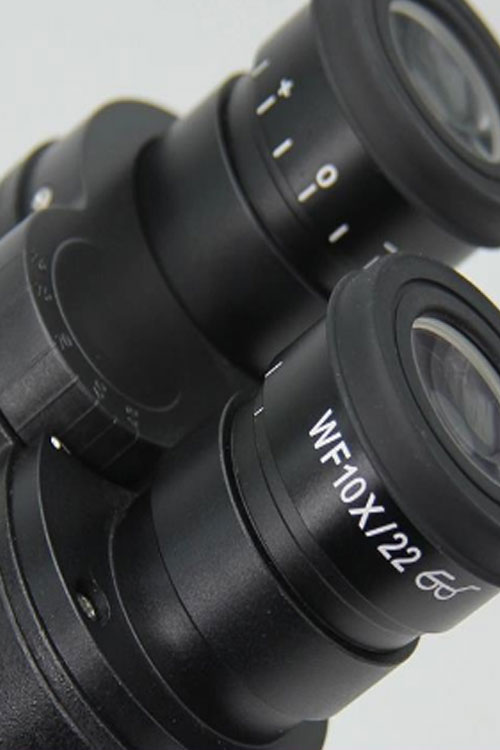

| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable |
| Nosepiece | Quintuple Nosepiece |
| Objectives |
Standard: - L Plan FL PHP 10x/0.25 W.D.=10.3mm - L Plan FL PHP 40x/0.65 W.D.=5.1mm
- L Plan FL PHP 4x/0.10 W.D.=9.2mm - L Plan FL 4x/0.11 W.D.=12.1mm - L Plan FL 10x/0.25 W.D.=10.3mm - L Plan FL 20x/0.45 W.D.=5.8mm - L Plan FL 40x/0.65 W.D.=5.1mm
|
| Phase Objectives |
L Plan FL PHP 20x/0.45 W.D.=5.8mm
Plan FL PHP 40x/0.65 W.D.=5.1mm |

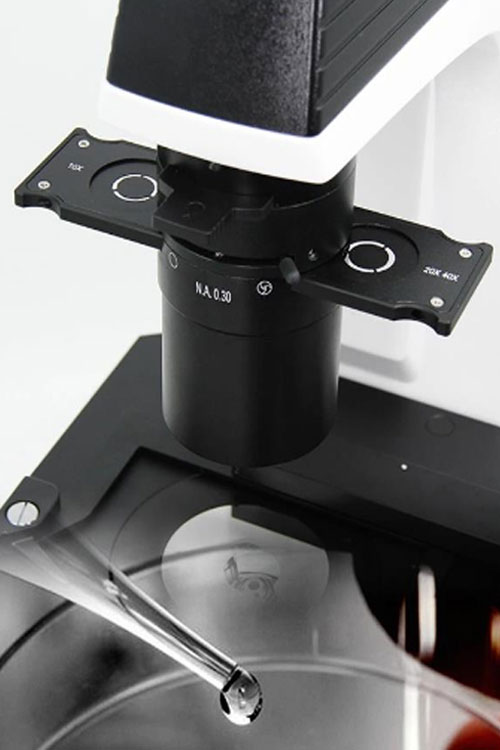

| Phase Contrast | Annular Spot 20x/40x, Annular Spot 10x Optional: Annular Spot 4x |
| Stage | Mechanical Stage 210x241mm, Round Slide Φ110mm, Culture Dish Holder 54mm Accessories: - Attachable Mechanical Stage for 96 Hole Plate (128x80mm) - Terasaki Holders: a. Culture Dish Holder 65mm b. Culture Dish Holder 35mm c. Holder for Blood Cell Counter d. Universal Holder (New 2021) e. Round Glass Holder (New 2021) |
| Focusing | Coaxial Coarse & Fine Adjustment Fine Division: 0.002mm Coarse Stroke: 37.7mm per Rotation Fine Stroke: 0.2mm per Rotation Moving Range: Up 8mm / Down 3mm |

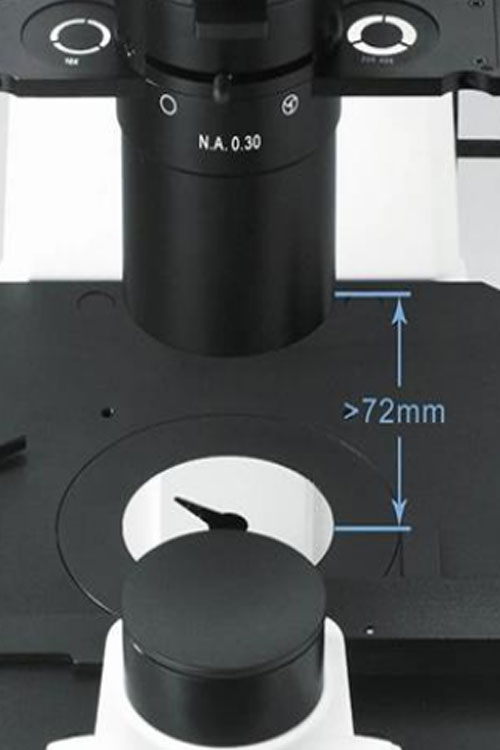

| Condenser | LWD, Quickly Detachable, N.A. 0.3 Working Distance: 72mm (with condenser), 195mm (without condenser) |
| Illumination |
Standard:
Koehler Illumination 5W LED,
Optional:
Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V |
| Filters | Blue, Green & Ground Glass (Dia. 45mm) |
| Optional Accessories | - Inverted Fluorescent Attachment - Photo Attachment - Video Adapter (C-Mount) - Polarizing Set - ECO Auto Power Off (after 10 mins idle, resumes on approach, manually switchable) |
