| Technical Specification | |
| Optical system | Infinity color corrected optical system |
| Eyepiece | PL10X/20T plan eyepiece 10X with diopter ±5 adjustable, field scope 20mm |
| PL10X/22T plan eyepiece 10X with diopter ±5 adjustable, field scope 22mm | |
| Objective | Plan achromatic objectives 4X/10X/20X/40X/100X |
| Plan phase contrast objectives 10X/20X/40X/100X | |
| Plan Semi-apochromatic fluorescence objectives 4X/10X/20X/40X/100X | |
| Plan Semi-apochromatic fluorescence objectives 10X/20X/40X/100X, without cover glass | |
| Viewing head | 30° gemel binocular; eyepiece tube can rotate 360°; interpupillary distance 50–75 mm |
| 30° gemel trinocular; eyepiece tube can rotate 360°; interpupillary distance 50–75 mm; fixed spectroscopical ratio R/T = 80/20 | |
| 30° gemel fluorescence trinocular head; eyepiece tube can rotate 360°; interpupillary distance 50–75 mm; fixed spectroscopical ratio R/T = 55/45 | |
| 30° gemel digital head (three / five megapixel) | |
| Nosepiece | Reversed quintuple nosepiece |
| Reversed quadruple nosepiece | |
| Stage | 150×140 mm mechanical stage with underhand; 76×50 mm moving range; precision 0.1 mm; damping clip |
| 150×140 mm rackless stage; 76×50 mm moving range; precision 0.1 mm | |
| Condenser | N.A. 1.25 Köhler condenser group with socket for phase contrast disk; dark-field device; center adjustable |
| Focus adjustment | Coarse focusing stroke 38 mm with tightness adjustment and upper limit stop; fine adjustment precision 0.002 mm |
| Reflection illumination system | LED reflection illumination; swing-in band filter with corresponding LED module; intensity adjustable |
| Transmitted illumination system | Mercury lamp reflection illumination 100 W DC power bulb (OSRAM/domestic) |

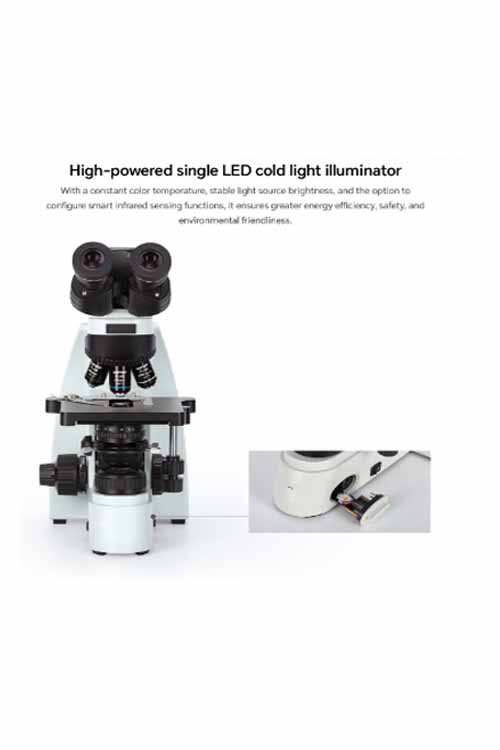

| 100V–240V AC voltage; single high brightness 3 W LED (predetermined filament center); brightness adjustable | |
| 100V–240V AC voltage; PHL-IPS 6V/30W halogen lamp (preset filament center); brightness adjustable | |
| Battery package | For power supply 8 hours; double-way output with indicator for battery capacity |
| CCD Adapter | 1X / 0.65X / 0.5X / 0.35X C-mount |
| Other accessories | Dark-field accessories; phase contrast accessories; polarizer/analyzer |
