The M1 Portable Metallurgical Microscope is a compact, all-in-one device designed for on-the-go metal surface inspections. It's built for portability, with a lightweight design housed in a strong aluminum case. The microscope can be upgraded for digital imaging and includes optional magnetic stands for stable positioning on metallic surfaces.
Portable Design: Ideal for field inspections.
Compact Structure: All-in-one system.
Aluminum Case: Durable, included with standard package.
Digital Upgrade: Optional SLR camera adapters.
Coaxial Illumination: Adjustable LED lighting with rechargeable battery power (battery not included for air shipment).
Magnification: 100x to 400x.
Focus System: Coaxial coarse and fine focusing.
Optional Accessories: Magnet stand, polarizing filters, photo adapters.
| Component | Specification |
|---|---|
| Model | M1 Portable Metallurgical Microscope |
| Total Magnification | 100x – 400x |
| Mechanical Tube | 160 mm |
| Head | Monocular Vertical Head |
| Eyepiece | WF10X |
| Standard Objectives | - PLL 10X/0.25, W.D. = 7.3 mm - PLL 40X/0.65, W.D. = 0.5 mm |
| Focusing | Coaxial coarse and fine focus Focusing range: 36 mm |
| Illumination | LED coaxial illumination, brightness adjustable Powered by rechargeable batteries (batteries not included in air shipment) |
| Packing | Portable aluminum case |
| Type | Accessory |
|---|---|

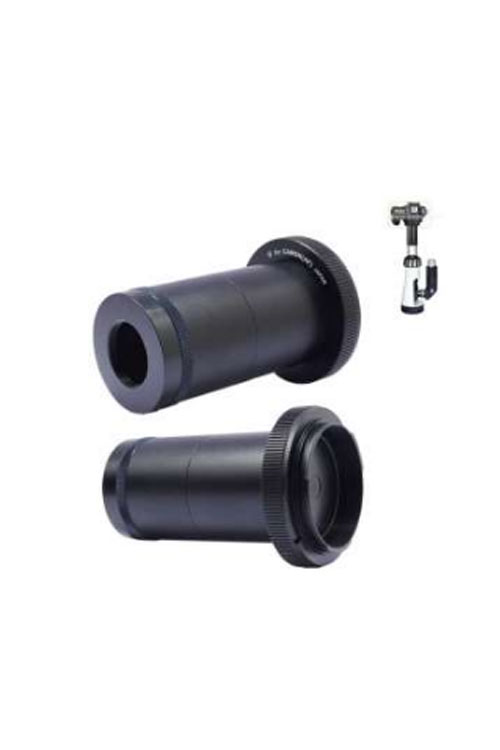

| Adapter | - Photo Adapter for SLR Digital Camera (Canon Series 1) - Photo Adapter for SLR Digital Camera (Nikon Series 2) |
| Polarizing Set | - Polarizer & Analyzer Slides |
| Additional LWD Plan Objectives (No Cover Glass) | - 20x/0.40, W.D. = 8.6 mm - 50x/0.70, W.D. = 2.20 mm, Spring - 60x/0.75, W.D. = 1.34 mm, Spring - 80x/0.80, W.D. = 0.96 mm, Spring - 100x/1.25, W.D. = 0.33 mm, Spring, Oil |
| Magnet Stand | - Magnet Stand with X/Y moving range 10×10 mm |
