| Technical Specification | |

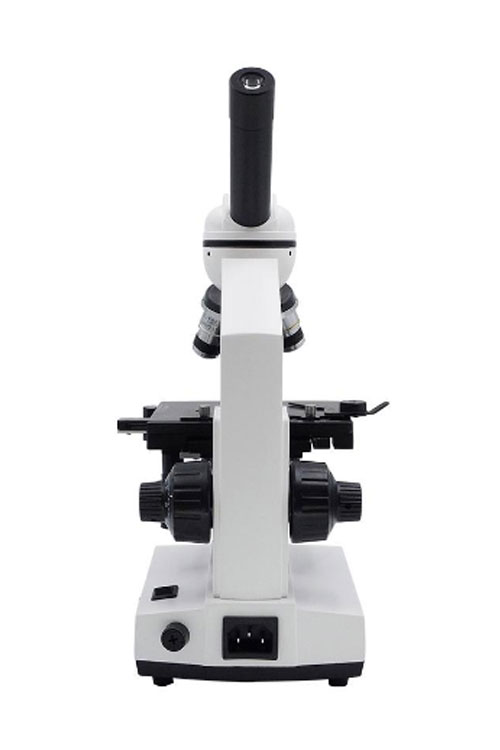

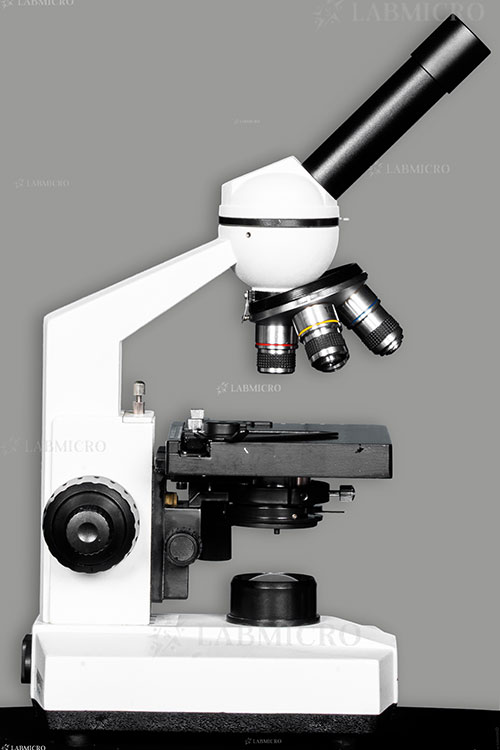

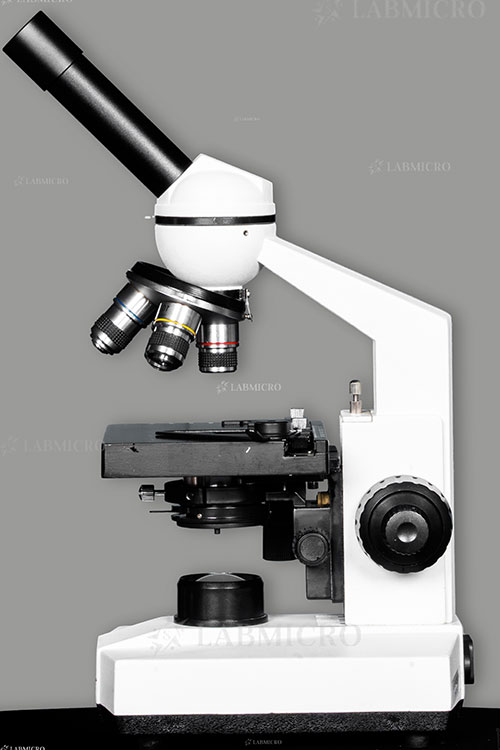

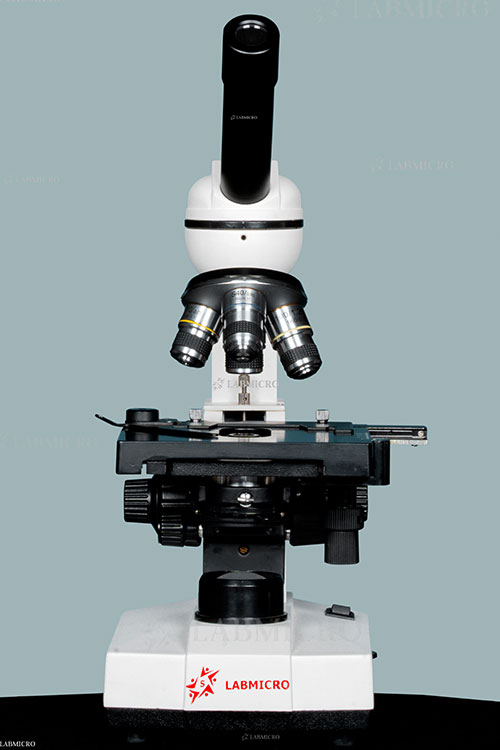

| MODEL No. | SLV-10M |
| Viewing Head: | Monocular, 45° inclined; 360° rotating. |
| Eyepiece: | WF10x/18 mm. OPTIONAL: Pointer, Micrometer Eyepiece |
| Nosepiece: | Quadruple ball bearings revolving nosepiece. |
| Objectives: | Achromatic 4x/0.10, with anti-fungus treatment Achromatic 10x/0.25, with anti-fungus treatment Achromatic 40x/0.65, with anti-fungus treatment Achromatic 100x/1.17, with anti-fungus treatment |
| Specimen stage: | Double layer Mechanical Stage 110mm X 120mm. / 60mm X 30mm. |
| Focusing: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
| Condenser: | Diffusing filter with rotating diaphragm wheel 1.25NA |
| Illumination: | 1W LED, with light intensity control / LED with Battery Back-up. |
