• Trinocular Microscope 10x/25mm
• Sextuple Nosepiece with DIC slot,
• Infinite Plan Semi-Apochromatic Objective 10x, 20x, 40x, 60x & 100

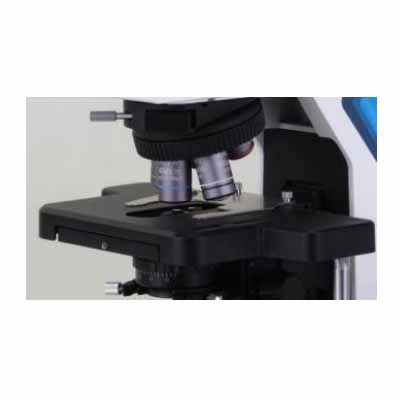

• Steel wire stage with Rack less, Size 280 X 160 mm, Moving range 80 X 52mm
• N.A.0.90/0.13 Swing-out Condenser with Iris diagram.
• Kohler illumination 12V/50W; 12V/100W; 5W LED(Option
Yes I'm Interested| Items | SLV-30 Laboratory Biological Microscope | |
|---|---|---|

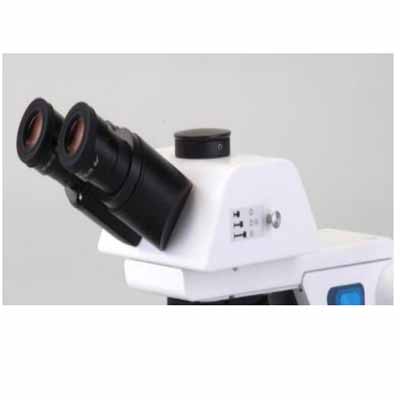

| Head | Siedentopf Trinocular Head Inclined 30°, Rotatable 360°, Light Split Switch E100:P100/E20:P80/E0:P100 | ● |
| Eyepiece | WF10X/22mm (High Eyepoint) | ● |
| Nosepiece | Sextuple, Backward | ● |
| Infinity Series Objectives | UPLFlan FL4X 0.10, W.D 17.5mm | ● |
| UPLFlan FL10X/0.30, W.D 10.5mm | ● | |
| PlanFluor 20X/0.45, W.D 4.7mm | ● | |
| PlanFluor 40X/0.60, W.D 0.37mm | ● | |
| UPLFlan 100X/1.30 Oil, W.D 0.20mm | ● | |
| Working Stage | Steel wire stage with Rackless. Size 280×160mm, moving range 80×32mm. | ● |
| Focusing | Coaxial Coarse & Fine Focusing. Coarse Range: 30mm, Fine Range: 0.002mm. | ● |
| Condenser | Swing-out Condenser, N.A 0.90, Iris Diaphragm | ● |
| Illumination | Transmit Light 12V100W — Koehler Illumination, Wide Voltage 100V–240V | ● |
| Transmit Light 5W LED — Koehler Illumination, Wide Voltage 100V–240V | ● | |
| Field Diaphragm for Koehler Illumination | ● |
| Items | SLV-30 Laboratory Biological Microscope | |
|---|---|---|
| Filter | Blue | ● |
| Green | ● | |
| Yellow | ● | |
| Dark Field | Dark Field Condenser, Dry, NA 0.8-0.91, For 4×/10×/40× Objectives | ○ |
| Dark Field Condenser, Immersion NA1.13, For 100× Objective | ○ | |
| Polarizing | Analyzer & Polarizer Set | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10× + Phase Contrast Slide 10× + Phase Contrast Condenser | ○ |
| Infinity Plan Phase Contrast Objective 20× + Phase Contrast Slide 20× + Phase Contrast Condenser | ○ | |
| Infinity Plan Phase Contrast Objective 40× + Phase Contrast Slide 40× + Phase Contrast Condenser | ○ | |
| Infinity Plan Phase Contrast Objective 100× Oil + Phase Contrast Slide 100× + Phase Contrast Condenser | ○ | |
| Phase Turret Condenser 4 Position | ○ | |
| Plan Phase Contrast Objective UPlanFLN 100×/1.30 Oil, Turret Phase Contrast Condenser 5 Position | ○ | |
| Phase Contrast Centering Telescope | ○ | |
| Fluorescence Unit | Upgrade to EPI Fluorescence Microscope | ○ |
| 100W Mercury Lamp House | ○ | |
| 100W Mercury Power Box, Digital Display | ○ | |
| 5-Position Fluorescence Filter Block Unit | ○ | |
| B/G/U/V/UV Filter Blocks | ○ | |
| Centering Telescope | ○ | |
| U-Shape Mercury Lamp 2 pcs | ○ | |
| Upgrade to LED Fluorescence Microscope | ○ | |
| LED Fluorescence Light for Blue | ○ | |
| LED Fluorescence Light for Green | ○ | |
| Adapter | C-Mount 0.5×, Focus Adjustable | ○ |
| C-Mount 0.75×, Focus Adjustable | ○ | |
| C-Mount 1.0×, Focus Adjustable | ○ | |
| C-Mount 0.35×, Focus Adjustable | ○ | |
| C-Mount 0.65×, Focus Adjustable | ○ | |
| C-Mount 1.0×, Focus Adjustable | ○ | |
| Digital Eyepiece Camera Adapter, Dia 23.2mm/25mm | ○ |
