| Polarizing |
Analyzer media unit 0~90° adjustable, with removable Bertrand lens built-in; Compensator slide, 3 holes, with λ slip (First Class Red) + 1/4λ slip |
| Power Supply Type |
AC 100V-240V Wide Voltage |
| Transmit Light |
12V20W Halogen, with blue filter on light collector |
| Light Source Type |
Halogen |
| Condenser N.A. |
1.25 |
| Condenser Type |
Abbe |
| Condenser Features |
Rack & Pinion ↑↓ |
| Focusing Type |
Coaxial Coarse & Fine |
| Focusing Features |
Tension Adjustable; Safety Stop Screw |
| Working Stage |
Lockable |
| Working Stage Moving |
Rotatable 360° |

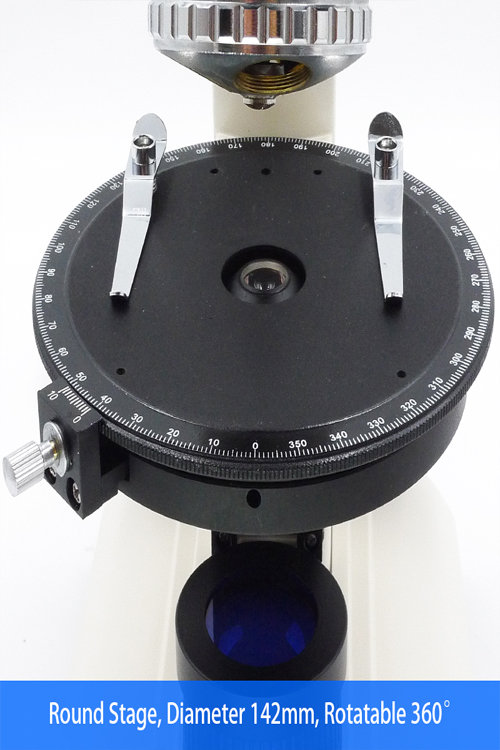

| Working Stage Size |
Dia.142mm, Division 1', Vernier Division 6' |
| Working Stage Type |
Round Stage |
| Working Stage Features |
360° Rotatable |

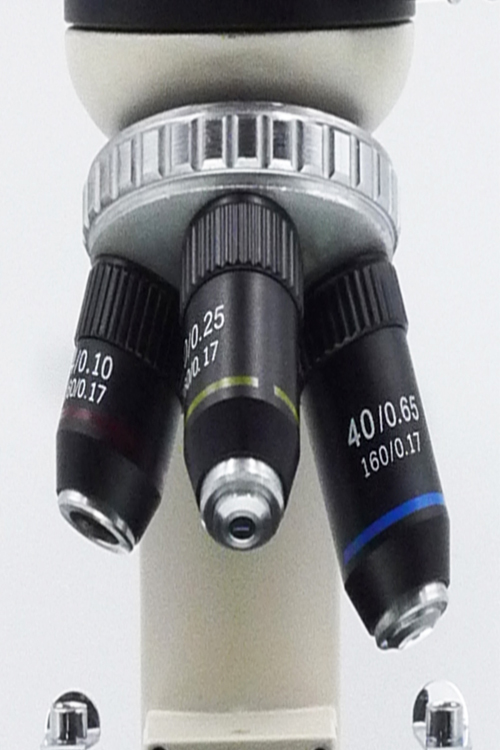

| Objective |
Non-Stress Achromatic: 4x/0.10 (W.D.=18.6mm); 10x/0.25 (W.D.=6.5mm); 40x/0.6 (W.D.=0.47mm) |
| Objective Type |
Achromatic |
| Objective Features |
Strain-Free |
| Nosepiece Holes |
4 Holes |
| Nosepiece Features |
Outward |

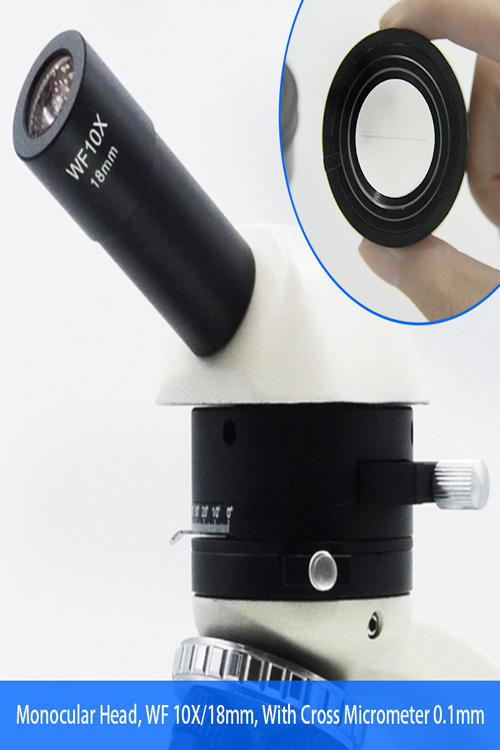

| Eyepiece |
WF10x/18mm, with Cross Micrometer (2 pcs) |
| Eyepiece Diameter |
23.2mm |
| Eyepiece Features |
Micrometer |
| Head Rotation |
Head Rotate 360° |
| Head Inclination |
30° |
| Head Type |
Monocular |
| Standard Magnification |
40x-400x |
| Optical System |
Achromatic |
| Standard Function |
BF + PL |
