BINOCULAR MICROSCOPE
PRODUCT APPLICATION
Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research etc.
Yes I'm Interested Download
| Model No. | SLV-20A |
| Optical System: | Finity Optical System |

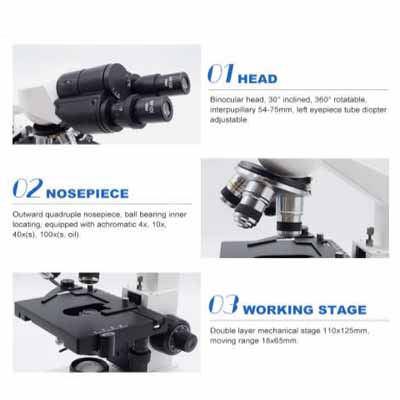

| Viewing Head: | Binocular Head, 30° Inclined, 360° Rotatable |
| Eyepiece: | Wide Field WF 10X/18MM with diopter adjustment. |
| Nosepiece: | Quadruple Nosepiece, Ball Bearing Inner Locating |
| Objectives: | Achromatic Objective 4X, 10X, 40X (SL), 100X (oil) |
| Specimen stage: | Double layer Mechanical Stage 110mm × 120mm. / 60mm × 30mm. |
| Focusing: | Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm |

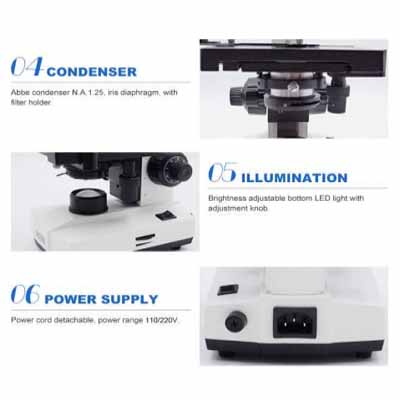

| Condenser: | Abbe Condenser N.A.1.25, With Iris Diaphragm Filter |
| Illumination: | Built-in Illumination LED Brightness Adjustable |
| Filter | Blue |
