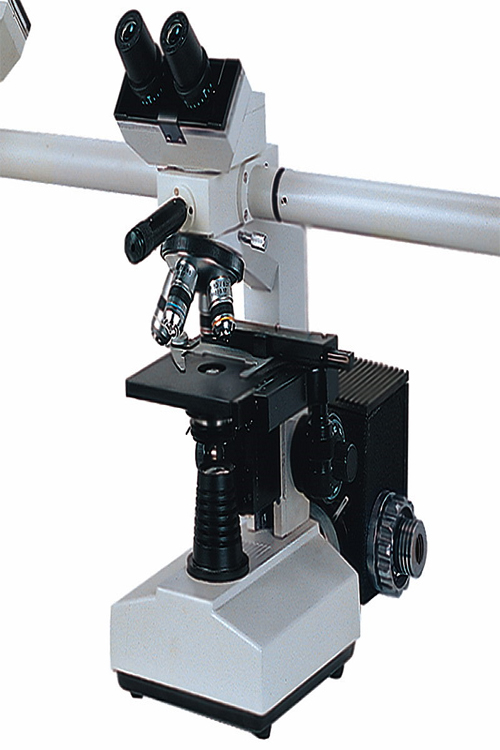

The SLV-20i-5 is a professional-grade multi-viewing microscope designed to allow up to five users to simultaneously observe the same specimen. This system is ideal for teaching laboratories, group discussions, clinical instruction, and collaborative analysis in biological and medical sciences.
Built upon a high-clarity infinity optical system, the SLV-20i-5 ensures that each viewer experiences the same field of view, brightness, and image fidelity. It is especially suited for demonstrations, diagnostics, and pathology training where real-time group observation is essential.
Yes I'm Interested| Category | Specification |
|---|---|
| Viewing System | 5-Head Simultaneous Viewing System (1 Main Viewer + 4 Assistant Viewers) |
| Observation Heads | Trinocular Main Head, Binocular Assistant Heads, All with 30° Inclination |
| Optical System | Infinity-Corrected Optical System |
| Eyepiece | WF10x/22mm High Eyepoint Eyepieces with Diopter Adjustment (All Heads) |
| Interpupillary Range | 48–76mm Adjustable for Each Viewing Head |
| Light Pointer | Built-in LED Red Pointer Controlled by Main Observer |
| Nosepiece | Quadruple/Quintuple Backward Ball-Bearing Inner-Click Nosepiece |
| Objectives | Infinity Plan Objectives: 4x, 10x, 40x(S), 100x(S, Oil) |
| Condenser | Abbe Condenser N.A.1.25 with Iris Diaphragm and Filter Holder |
| Focusing System | Coaxial Coarse & Fine Focus, Fine Division: 0.002mm |
| Stage | Double Layer Mechanical Stage 140mm × 140mm, X-Y Travel: 75mm × 50mm |
| Illumination | LED or 6V30W Halogen Koehler Illumination with Adjustable Brightness |
| Filters | Blue, Green, Yellow (Standard) |
| Power Supply | AC 100V–240V Wide Voltage with Transformer |
| Pointer Control | Controlled from Main Viewer via Button or Knob |
| Build | Heavy-Duty Cast Frame with Anti-Vibration Base |
| Optional Add-ons | Camera Port (Trinocular Head), Imaging System, Phase Contrast Kit, etc. |
