• Built-in All-in-One Fluorescent Media Unit 5W LED With 1 or 2 Filters
• Semi-APO Infinity Plan Fluorescent Objective Available for High Quality Image
• Creative 100x Water Objective Instead of I00x Oil Objective for Easy Use Without Oil
• High Rigidity Body Structure Design Supply High Steady and Easy Handle
• Different Colour Available to Customize Your Model!
Yes I'm InterestedTechnical Specification
|
Items |
MODEL- SLV-21iFL LED Fluorescent Microscope Specification |
-FL2 |
-FLT2 |
-FL4 |
-FLT4 |
|
Head |

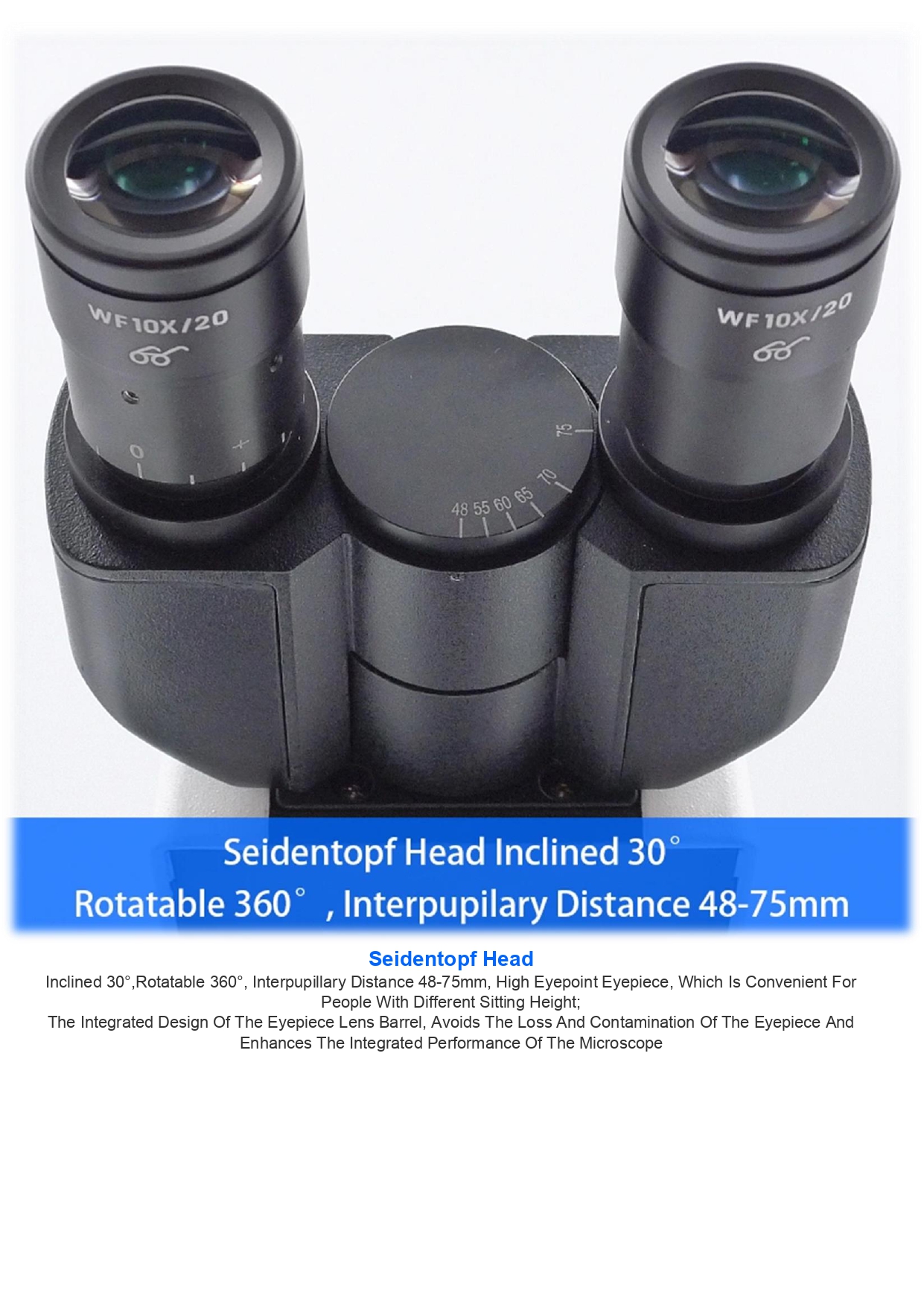

Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupillary Distance 48- 75mm |
● |
|
● |
|
|
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupillary Distance 48- 75mm, Light Split Fixed P20:E80 |
|
● |
|
● |
|
|
Eyepiece |
WF10X/20mm (High Eyepoint) |
●● |
●● |
●● |
●● |
|
Nosepiece |

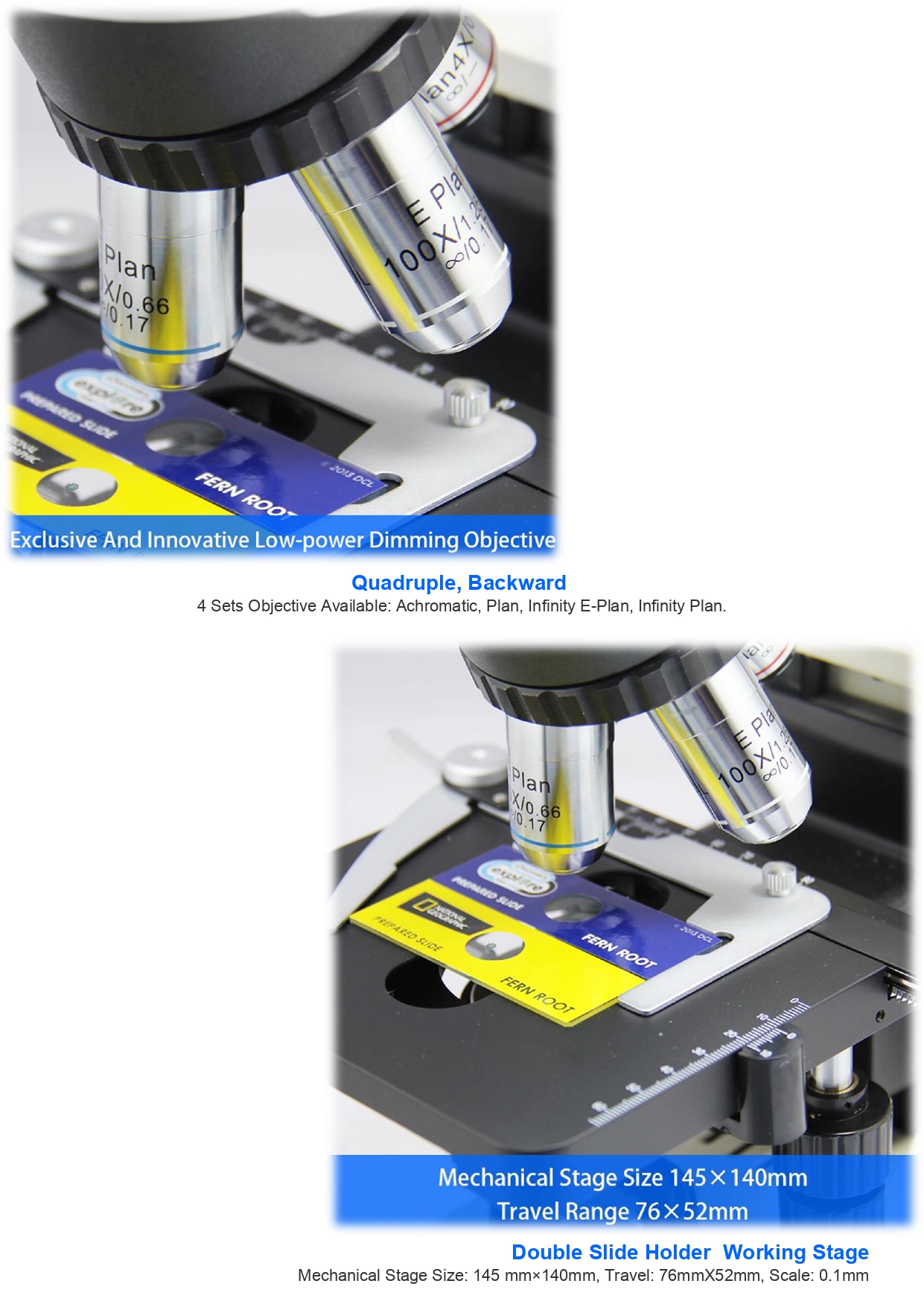

Quadruple, Backward |
● |
● |
● |
● |
|
Quintuple, Backward |
○ |
○ |
○ |
○ |
|
|
Infinity E-Plan Objective |
EPLAN 4x/0.10,W.D.=12.1mm |
● |
● |
● |
● |
|
EPLAN 10x/0.25,W.D.=4.14mm |
● |
● |
● |
● |
|
|
EPLAN 40x/0.65(S),W.D.=0.58mm |
● |
● |
● |
● |
|
|
EPLAN 100x/1.25(S, Oil),W.D.=0.19mm |
● |
● |
● |
● |
|
|
Infinity Plan Semi-APO Fluorescent Objective |
UplanFLN 4x, N.A.0.16，W.D.=17.151mm |
○ |
○ |
○ |
○ |
|
UplanFLN 10x, N.A.0.30，W.D.=7.68mm |
○ |
○ |
○ |
○ |
|
|
UplanFLN 20x, N.A.0.50，W.D.=1.96mm |
○ |
○ |
○ |
○ |
|
|
UplanFLN 40x, N.A.0.75，W.D.=0.78mm |
○ |
○ |
○ |
○ |
|
|
UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm |
○ |
○ |
○ |
○ |
|
|
Working Stage |
Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder |
● |
● |
● |
● |
|
Rackless (Integrated) Stage, Size 140×135mm, Travel Range 75×35mm, Double Slide Holder |
○ |
○ |
○ |
○ |
|
|
Focusing |
Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division |
● |
● |
● |
● |
|
Condenser |

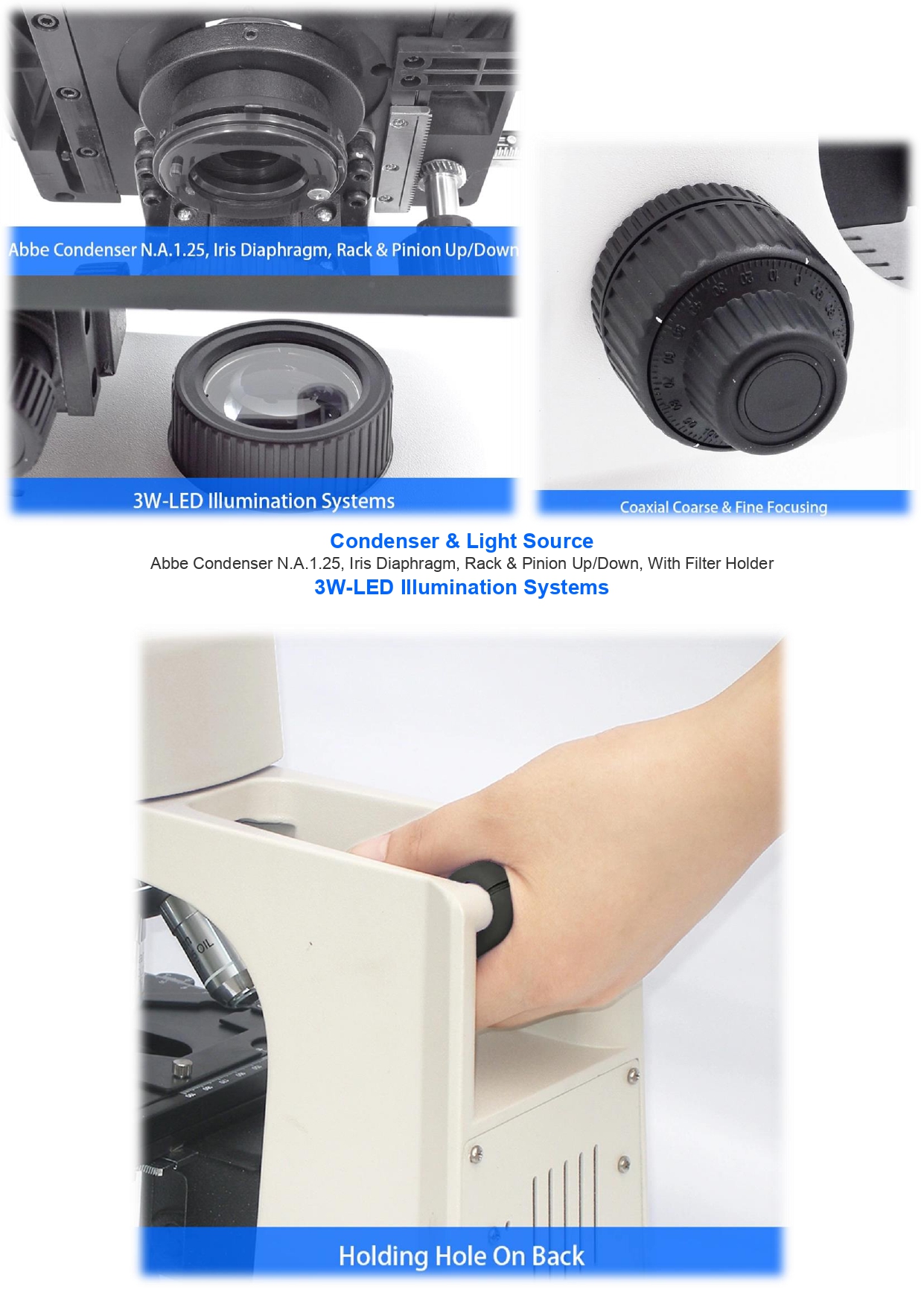

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down |
● |
● |
● |
● |
|
Illumination |
3W-LED Illumination Systems Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
● |
● |
● |
● |
|
12V/20W Halogen Lamp |
○ |
○ |
○ |
○ |
|
|
6V/30W Halogen Lamp |
○ |
○ |
○ |
○ |
|
Field Diaphragm |
Upgrade To Kohler Illumination |
○ |
○ |
○ |
○ |
|
Filter |
Dia.45mm, Blue |
○ |
○ |
○ |
○ |
|
Dia.45mm, Green |
○ |
○ |
○ |
○ |
|
|
Dia.45mm, Yellow |
○ |
○ |
○ |
○ |
|
|
Dark Field |
Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective |
○ |
○ |
○ |
○ |
|
Polarizing |
Analyzer + Polarizer Set |
○ |
○ |
○ |
○ |
|
Phase Contrast |
Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
○ |
○ |
|
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
○ |
○ |
|
|
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
○ |
○ |
|
|
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
○ |
○ |
|
Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter |
○ |
○ |
○ |
○ |
|
|
Fluorescence |

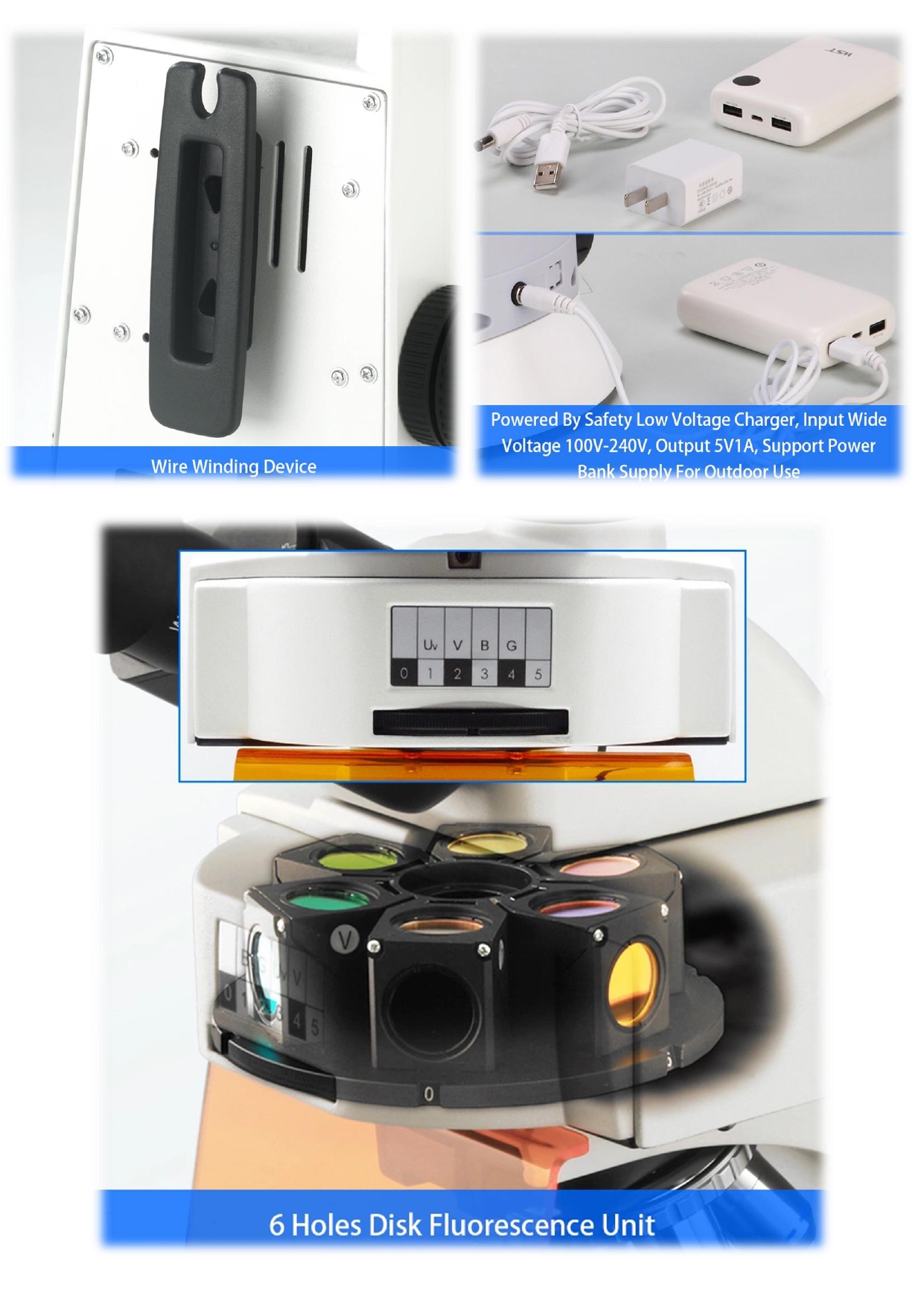

Upgrade From LABO-FL-C/CT Biological Microscope With: B,G Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier |
● |
● |
|
|
|
Upgrade From LABO-FL- C/CT Biological Microscope With: B,G,U,UV Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier |
|
|
● |
● |
|
|
Adapter |
C-Mount 0.5x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
C-Mount 0.75x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
|
C-Mount1.0x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
|
Upgrade From A12.2601-C/CT Fluorescence Microscope With: |
○ |
○ |
○ |
○ |
|
|
Mirror |
Reflecting Mirror & Holder |
○ |
○ |
○ |
○ |
|
Attachment |
Wire Winding Device |
○ |
○ |
○ |
○ |
|
Package |
Carton Size 970×340×440mm, 1 pc / Ctn |
||||
|
Weight |
Gross Weight: 22 kgs, Net Weight: 18 kgs |
||||
|
Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories |
|||||
