Advanced Research-Grade Fluorescent Microscope for Biological and Clinical Applications
The SLV-22FL is a high-performance research microscope, designed specifically for advanced fluorescence imaging. It is ideal for applications in cell biology, pathology, microbiology, immunofluorescence, and routine laboratory diagnostics. This model combines high optical clarity, ergonomic design, and versatile imaging options to meet the needs of professionals in medical, academic, and industrial laboratories.
Optical Excellence:
The SLV-22FL uses infinity-corrected Plan Achromatic and optional Semi-APO Fluorescent objectives. This ensures sharp, high-contrast imaging across the entire field of view.
Modular Head System:
Choose between a Binocular (B2/B4) or Trinocular (T2/T4) Siedentopf head with 360° rotation and interpupillary distance adjustment (48–76 mm). Trinocular versions support camera attachments via a light-splitting switch.
Wide-Field Viewing:

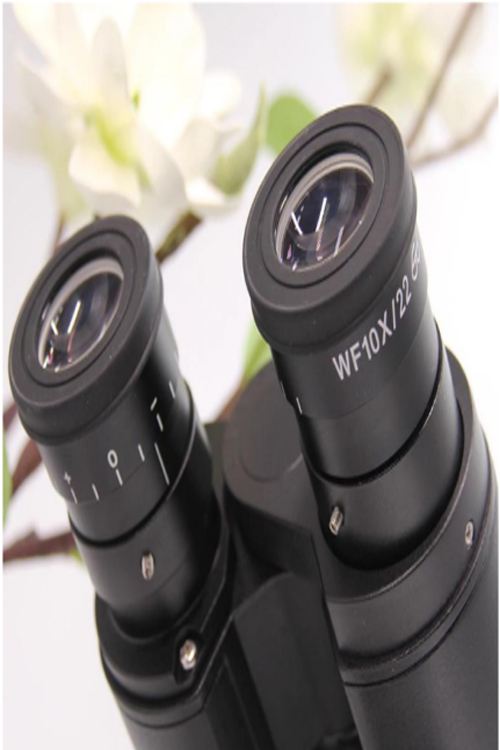

Equipped with WF10x/22mm eyepieces, high-eyepoint, and diopter adjustments for comfortable, extended observation.
Robust Illumination:
Transmitted light uses 6V/30W halogen Koehler illumination, adjustable with a field diaphragm. Fluorescence imaging is supported by LED lamp houses (5W) with Chroma filter sets (Blue, Green, UV, Ultraviolet).
Fluorescence Capability:
The SLV-22FL supports both basic (B, G) and extended (B, G, U, UV) fluorescence modules, with a 6-hole disc turret and UV protection barriers. Ideal for multichannel fluorescence labeling.
Advanced Stage System:
Precision-engineered rackless mechanical stage (182×140mm) with 77×52mm travel and dual slide holder for smooth navigation and stability.
Precision Focusing:
Coaxial coarse & fine focusing (fine division: 0.002 mm) with 22 mm travel ensures accurate Z-stack focusing and sample depth examination.
Filter Flexibility:
Includes a standard Blue filter, with optional Green and Yellow filters for contrast enhancement in brightfield and fluorescence modes.
Phase & Polarizing Ready:
Compatible with optional Phase Contrast sets (10x to 100x) and Polarizing accessories for special specimen analysis.
Digital Imaging Integration:
Multiple C-Mount adapters (0.5x, 0.75x, 1.0x) and Digital Eyepiece Adapter allow seamless integration with imaging cameras or software systems.
| Category | Specification | B2 | T2 | B4 | T4 |
|---|---|---|---|---|---|
| Head | Siedentopf Binocular Head | ● | ○ | ● | ○ |
| Head | Siedentopf Trinocular Head | ○ | ● | ○ | ● |

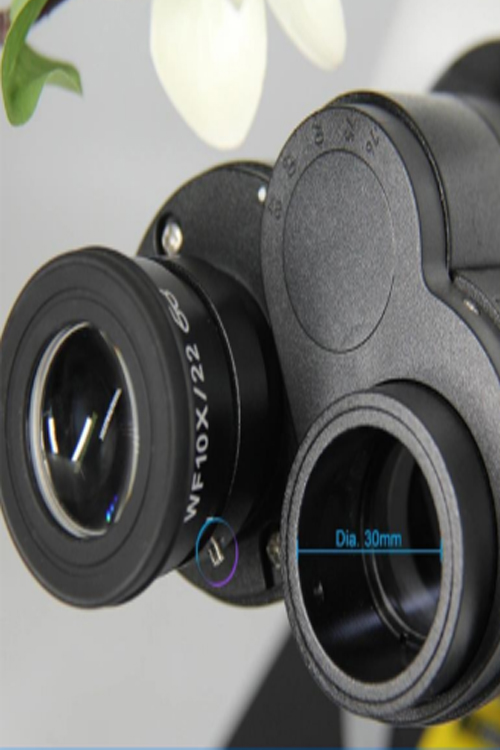

| Eyepiece | WF10x/22mm, Dia.30mm, Diopter Adjustable | ●● | ●● | ●● | ●● |
| Nosepiece | Quintuple | ● | ● | ● | ● |
| Infinity Plan Objective | PLAN 2.5X/0.07 | ○ | ○ | ○ | ○ |
| PLAN 4X/0.10 | ● | ● | ● | ● | |
| PLAN 10X/0.25 | ● | ● | ● | ● | |
| PLAN 20X/0.40(S) | ● | ● | ● | ● | |
| PLAN 40X/0.66(S) | ● | ● | ● | ● | |
| PLAN 60X/0.80(S) | ○ | ○ | ○ | ○ | |
| PLAN 100X/1.25(S, Oil) | ● | ● | ● | ● | |
| PLAN 100X/1.15(S, Water) | ○ | ○ | ○ | ○ | |
| Infinity Plan Semi-APO | U PLAN FLN 4x | ○ | ○ | ○ | ○ |
| U PLAN FLN 10x | ○ | ○ | ○ | ○ | |
| U PLAN FLN 20x | ○ | ○ | ○ | ○ | |
| U PLAN FLN 40x | ○ | ○ | ○ | ○ | |
| U PLAN FLN 100x (Oil) | ○ | ○ | ○ | ○ | |
| Working Stage | Rackless 182×140mm, Travel 77×52mm, Double Slide Holder | ● | ● | ● | ● |
| Mechanical 175×145mm, Travel 76×52mm, Scale 0.1mm | ○ | ○ | ○ | ○ | |
| Focusing | Coarse & Fine Focusing | ● | ● | ● | ● |
| Condenser | Swing-out N.A.0.9/0.13, Iris Diaphragm | ● | ● | ● | ● |
| Illumination | 6V30W Halogen Koehler + Field Diaphragm | ● | ● | ● | ● |
| Filter | Blue Dia.45mm | ● | ● | ● | ● |
| Green Dia.45mm | ○ | ○ | ○ | ○ | |
| Yellow Dia.45mm | ○ | ○ | ○ | ○ | |
| Dark Field | Dry Condenser | ○ | ○ | ○ | ○ |
| Immersion Condenser | ○ | ○ | ○ | ○ | |
| Polarizing | Analyzer + Polarizer Set | ○ | ○ | ○ | ○ |
| Phase Contrast | 10x, 20x, 40x, 100x Phase Sets | ○ | ○ | ○ | ○ |
| Turret Phase Contrast Attachment | ○ | ○ | ○ | ○ | |
| Fluorescence | B, G Chroma Set (Basic) | ● | ● | ||
| B, G, U, UV Chroma Set (Extended) | ● | ● | |||
| Adapter | C-Mount 0.5x / 0.75x / 1.0x, Digital Eyepiece Adapter | ○ | ○ | ○ | ○ |
| Packaging | Carton Size 990×340×440mm, Weight: Gross 23kg, Net 18kg | ✓ | ✓ | ✓ | ✓ |
