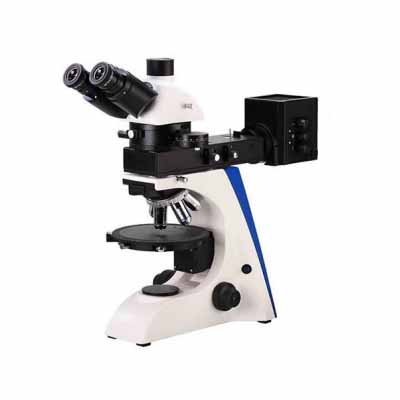

SLV-22POL-RT

Head

Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm,

Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned

●

●

●

Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm,

Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned

●

●

●

Eyepiece

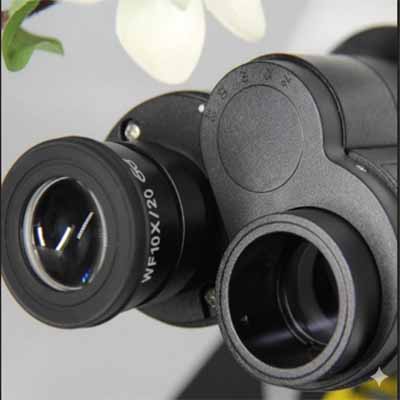

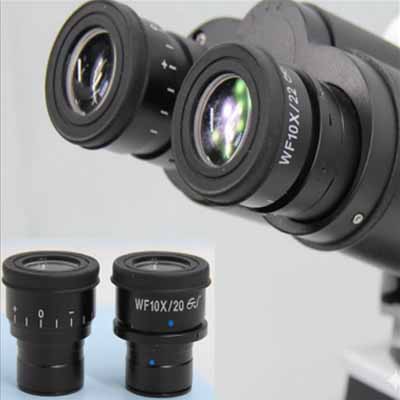

WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

●

●

WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y- Single Line, Diopter Adjustable, With Position Pin For Joint Move

●

●

WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable

●

●

●

●

WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y- Single Line, Diopter Adjustable, With Position Pin For Joint Move

●

●

●

●

Nosepiece

Quintuple, Center Adjustable

●

●

●

●

●

●

Non-Stress Infinity Plan Objective (Transmitting)

PLAN 4x/0.10, W.D.=12.1mm

●

●

●

●

PLAN 10x/0.25, W.D.=4.64mm

●

●

●

●

PLAN 20x/0.40(S), W.D.=2.41mm

●

●

●

●

PLAN 40x/0.66(S), W.D.=0.65mm

●

●

●

●

PLAN 60x/0.8(S), W.D.=0.33mm

PLAN 100x/1.25(S,Oil), W.D.=0.12mm

Non-Stress LWD Infinity Plan Objective (Reflecting)

LPL5x/0.13, W.D.=16.04mm

●

●

○

○

LPL10x/0.25 W.D.=18.48mm

●

●

○

○

LPL20x/0.40 W.D.=8.35mm

●

●

○

○

LPL50x/0.70(S) W.D.=1.95mm

●

●

●

●

LPL100x/0.90(S,Dry) W.D.=1.10mm

○

○

○

○

Working Stage

Round Stage Diameter Φ174mm, For Transmit Light,

Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked

●

●

○

○

●

●

Round Stage Diameter Φ148mm, For Reflect Light,

Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked

●

●

Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm

○

○

○

○

○

○

Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens

○

○

○

○

○

○

Condenser

Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked

●

●

●

●

Polarizing Unit

Analyzer Media Unit, Between Head And Body, Analyzer 0~360° Adjustable, Can Be Locked, With Betrand Lens Built-in Focus Adjustable,

●

●

●

●

●

●

Compensator Slide, With λ Slip (First Class Red)

●

●

●

●

●

●
