| Items | Polarzing Microscope | Transmit |
Reflect |
Trans&Reflect |
|||
| TB | TT | RB | RT | RTB | RTT | ||
| Head | Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm, Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned |
● | ● | ● | |||

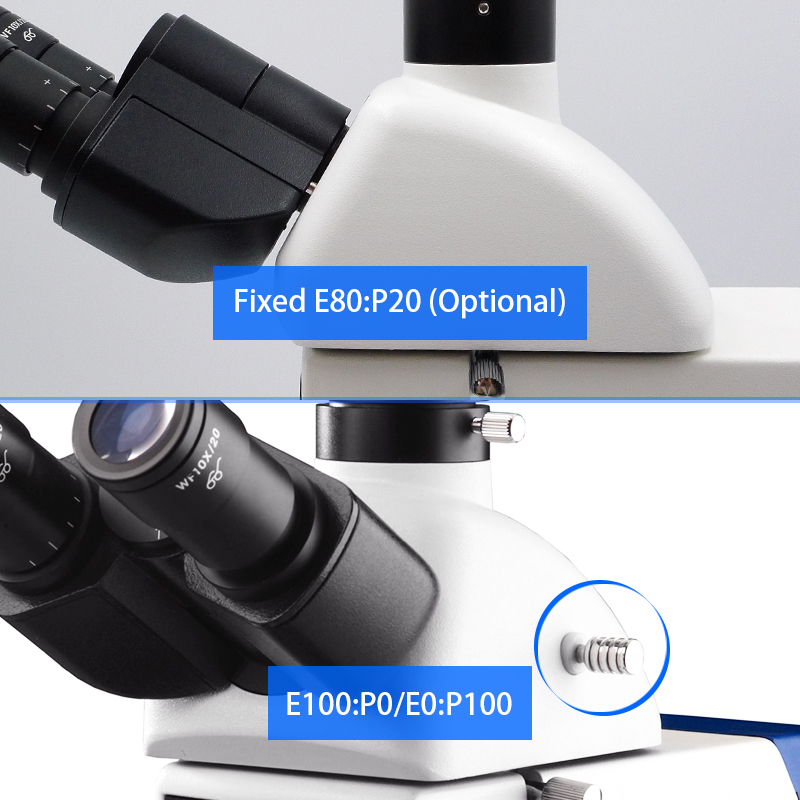

| Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned |
● | ● | ● | ||||
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ● | ● | ||||

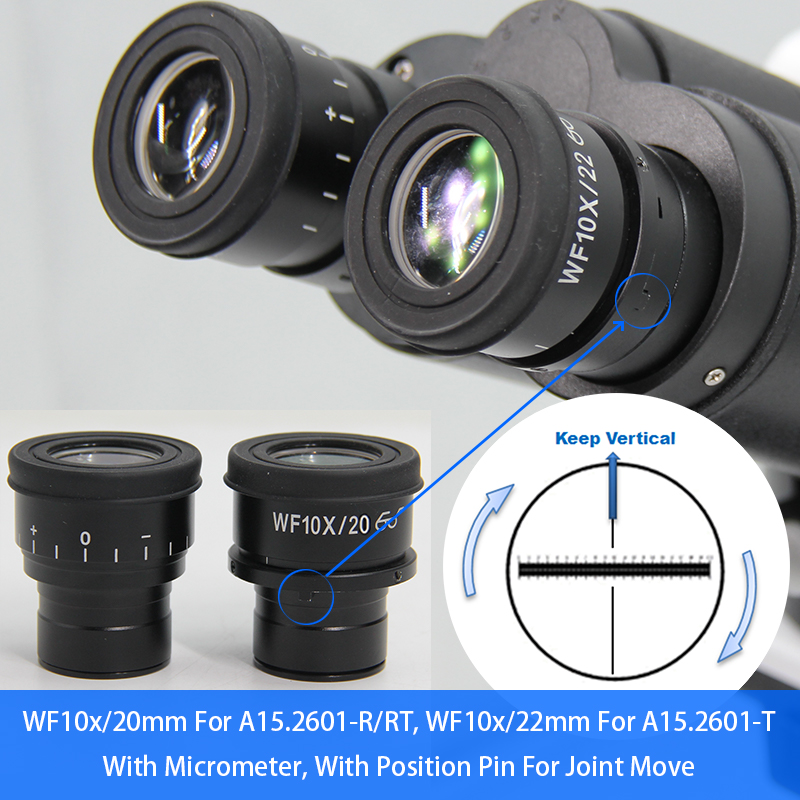

| WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move | ● | ● | |||||
| WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ● | ● | ● | ● | |||
| WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move | ● | ● | ● | ● | |||
| Nosepiece | Quintuple, Center Adjustable | ● | ● | ● | ● | ● | ● |
| Non-Stress Infinity Plan Objective (Transmitting) |
PLAN 4x/0.10, W.D.=12.1mm | ● | ● | ● | ● | ||
| PLAN 10x/0.25, W.D.=4.64mm | ● | ● | ● | ● | |||
| PLAN 20x/0.40(S), W.D.=2.41mm | ● | ● | ● | ● | |||
| PLAN 40x/0.66(S), W.D.=0.65mm | ● | ● | ● | ● | |||
| PLAN 60x/0.8(S), W.D.=0.33mm | |||||||
| PLAN 100x/1.25(S,Oil), W.D.=0.12mm | |||||||
| Non-Stress LWD Infinity Plan Objective (Reflecting) |
LPL5x/0.13, W.D.=16.04mm | ● | ● | ○ | ○ | ||
| LPL10x/0.25 W.D.=18.48mm | ● | ● | ○ | ○ | |||
| LPL20x/0.40 W.D.=8.35mm | ● | ● | ○ | ○ | |||
| LPL50x/0.70(S) W.D.=1.95mm | ● | ● | ● | ● | |||
| LPL100x/0.90(S,Dry) W.D.=1.10mm | ○ | ○ | ○ | ○ | |||
| Working Stage | Round Stage Diameter Φ174mm, For Transmit Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked |
● | ● | ○ | ○ | ● | ● |
| Round Stage Diameter Φ148mm, For Reflect Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked |
● | ● | |||||
| Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens | ○ | ○ | ○ | ○ | ○ | ○ | |
| Condenser | Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked | ● | ● | ● | ● | ||

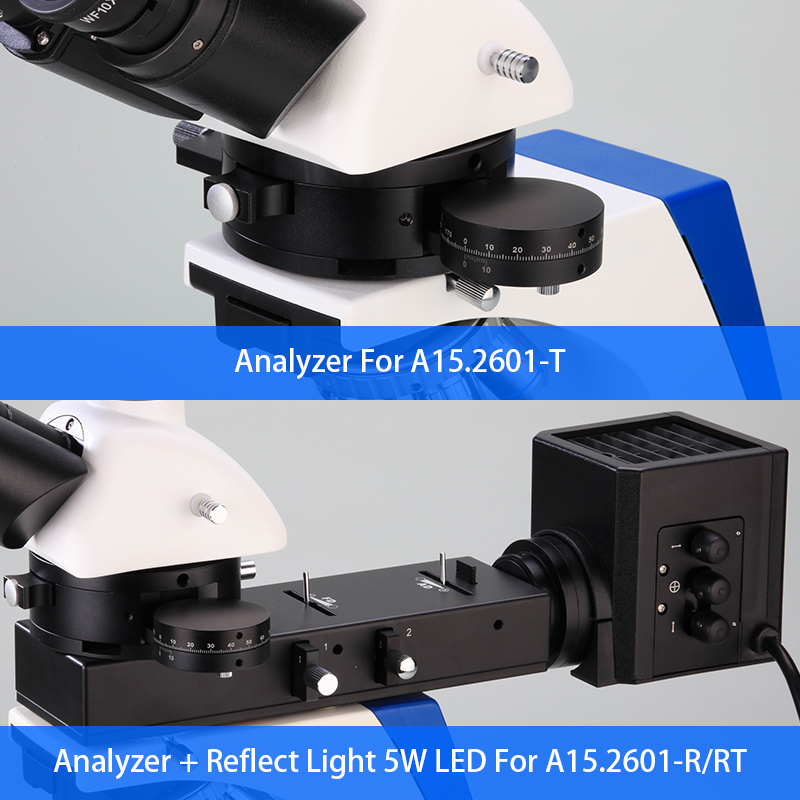

| Polarizing Unit | Analyzer Media Unit, Between Head And Body, Analyzer 0~360° Adjustable, Can Be Locked, With Betrand Lens Built-in Focus Adjustable, |
● | ● | ● | ● | ● | ● |
| Compensator Slide, With λ Slip (First Class Red) | ● | ● | ● | ● | ● | ● | |
| Compensator Slide, With λ/4 Slip | ● | ● | ● | ● | ● | ● | |
| Quartz Wedge Slide (I-IV Class) | ● | ● | ● | ● | ● | ● | |
| Quartz Wedge Slide (0-IV Class) Long Type | ○ | ○ | ○ | ○ | ○ | ○ | |
| Polarizer Lens, Bulit-in Bottom Part Of Condenser | ● | ● | ● | ● | ● | ● | |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm | ● | ● | ● | ● | ● | ● |
| Illumination | Transmit Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
● | ● | ● | ● | ||
| Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V |
○ | ○ | ○ | ○ | |||
| Reflect Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
● | ● | ● | ● | |||
| Reflect Light 12V50W Halogen Koehler Illumination, Wide Voltage 100V~240V |
○ | ○ | ○ | ○ | |||
| Field Diaphragm | For Kohler Illumnation | ● | ● | ● | ● | ● | ● |
| Power | ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually |
○ | ○ | ○ | ○ | ||
| Filter | Dia.45mm, Blue | ○ | ○ | ○ | ○ | ○ | ○ |
| Dia.45mm, Green | ○ | ○ | ○ | ○ | ○ | ○ | |
| Dia.45mm, Yellow | ○ | ○ | ○ | ○ | ○ | ○ | |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | ○ | |||
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | ○ | ||||
| C-Mount 1.0x, Focus Adjustable | ○ | ○ | ○ | ||||
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | ○ | ○ | ||||
| Package & Weight | Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs | ||||||
| Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs | |||||||
| Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs | |||||||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | |||||||
