Items |
SLV-40iFL Inverted Fluorescent Microscope Specification |
40iFL2 |
40iFL4 |
40iFL2L |
40iFL4L |
|
Head |

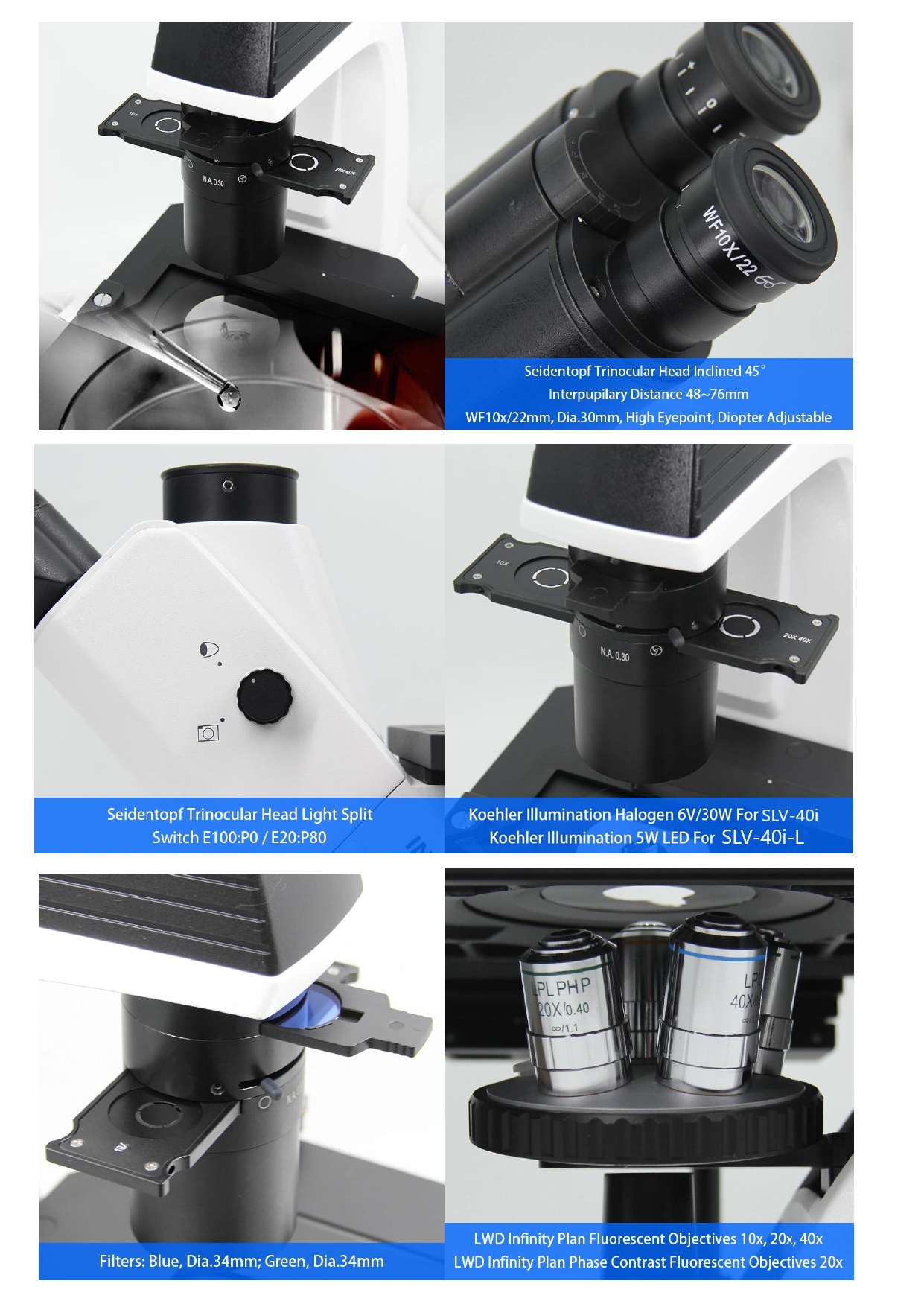

Siedentopf Trinocular Head Inclined 45°, Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 |
● |
● |
● |
● |
|
Eyepiece |
WF10x/22mm, Dia.30mm, High Eyepoint, Dioptre Adjustable |
●● |
●● |
●● |
●● |
|
WF15X/16mm, Dia.30mm, High Eyepoint, Dioptre Adjustable |
○○ |
○○ |
○○ |
○○ |
|
|
WF20X/12mm, Dia.30mm, High Eyepoint, Dioptre Adjustable |
○○ |
○○ |
○○ |
○○ |
|
|
Nosepiece |
Quintuple |
● |
● |
● |
● |
|
LWD Infinity Plan Semi-APO Objectives Update 2021 |
L Plan FL 4x/0.11 W.D.=12.1mm |
○ |
○ |
○ |
○ |
|
L Plan FL 10x/0.25 W.D.=10.3mm |
● |
● |
● |
● |
|
|
L Plan FL 20x/0.45 W.D.=5.8mm |
● |
● |
● |
● |
|
|
L Plan FL 40x/0.65 W.D.=5.1mm |
● |
● |
● |
● |
|
|
LWD Infinity Plan Phase Contrast Semi-APO Objectives Update 2021 |
L Plan FL PHP 4x/0.10 W.D.=9.2mm |
○ |
○ |
○ |
○ |
|
L Plan FL PHP 10x/0.25 W.D.=10.3mm |
○ |
○ |
○ |
○ |
|
|
L Plan FL PHP 20x/0.45 W.D.=5.8mm |
● |
● |
● |
● |
|
|
L Plan FL PHP 40x/0.65 W.D.=5.1mm |
○ |
○ |
○ |
○ |
|
|
Phase Contrast |
Centering Telescope 11x |
○ |
○ |
○ |
○ |
|
Annular Spot 4x |
○ |
○ |
○ |
○ |
|
|
Annular Spot 20x/ 40x |
● |
● |
● |
● |
|
|
Annular Spot 10x |
● |
● |
● |
● |
|
Working Stage |
Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm |
● |
● |
● |
● |
|
Attached Mechanical Stage, Available For 96 Holes Plate, Moving Range 128x80mm |
○ |
○ |
○ |
○ |
|
|
Culture Dish Holder 65mm |
○ |
○ |
○ |
○ |
|
|
Culture Dish Holder 54mm |
● |
● |
● |
● |
|
|
Culture Dish Holder 35mm |
○ |
○ |
○ |
○ |
|
|
Holder For Blood Cell Counter |
○ |
○ |
○ |
○ |
|
|
Universal Holder (New Accessory 2021) |
○ |
○ |
○ |
○ |
|
|
Round Glass Holder (New Accessory 2021) |
○ |
○ |
○ |
○ |
|
|
Condenser |
Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). |
● |
● |
● |
● |
|
Illumination |
Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V |
● |
● |
● |
● |
|
Koehler Illumination 5W LED, Input Voltage 100V~240V |
○ |
○ |
○ |
○ |
|
|
Power |

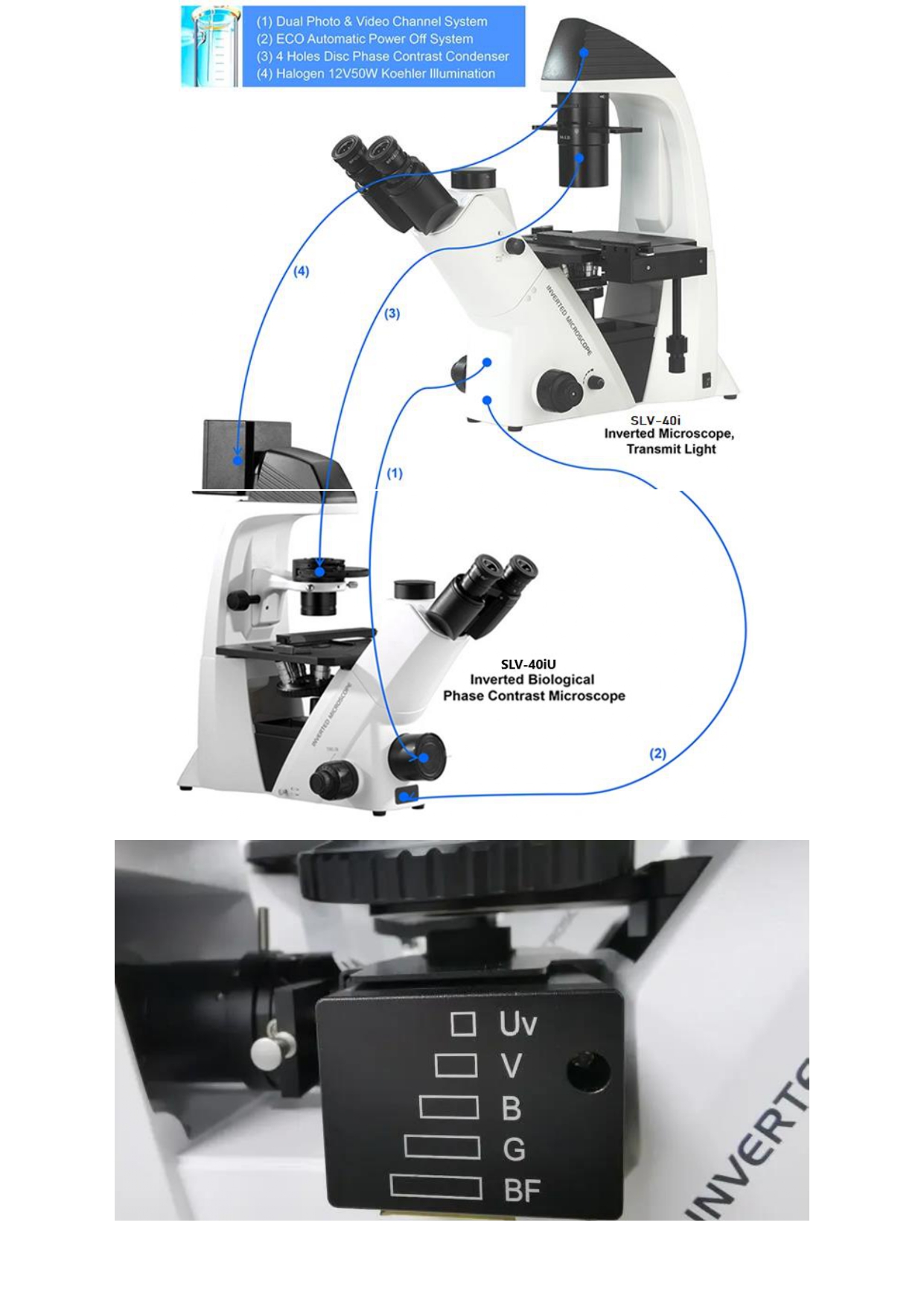

ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power on Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually |
○ |
○ |
○ |
○ |
|
Filter |
Blue, Dia.34mm |
● |
● |
● |
● |
|
Green, Dia.34mm |
● |
● |
● |
● |
|
|
Amber, Dia.34mm |
○ |
○ |
○ |
○ |
|
|
Grey, Dia.34mm |
○ |
○ |
○ |
○ |
|
Adapter |
C-Mount 0.5x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
C-Mount 0.75x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
|
C-Mount1.0x, Focus Adjustable |
○ |
○ |
○ |
○ |
|
|
Epi Fluorescence Illumination |
Upgrade From Inverted Microscope With B, G Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Ultraviolet Protection Barrier China 100W Mercury Lamp |
● |
○ |
|
|
|
Upgrade From Inverted Microscope With B, G, V, VU Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Ultraviolet Protection Barrier China 100W Mercury Lamp |
○ |
● |
|
|
|
|
Epi Fluorescence LED Illumination |

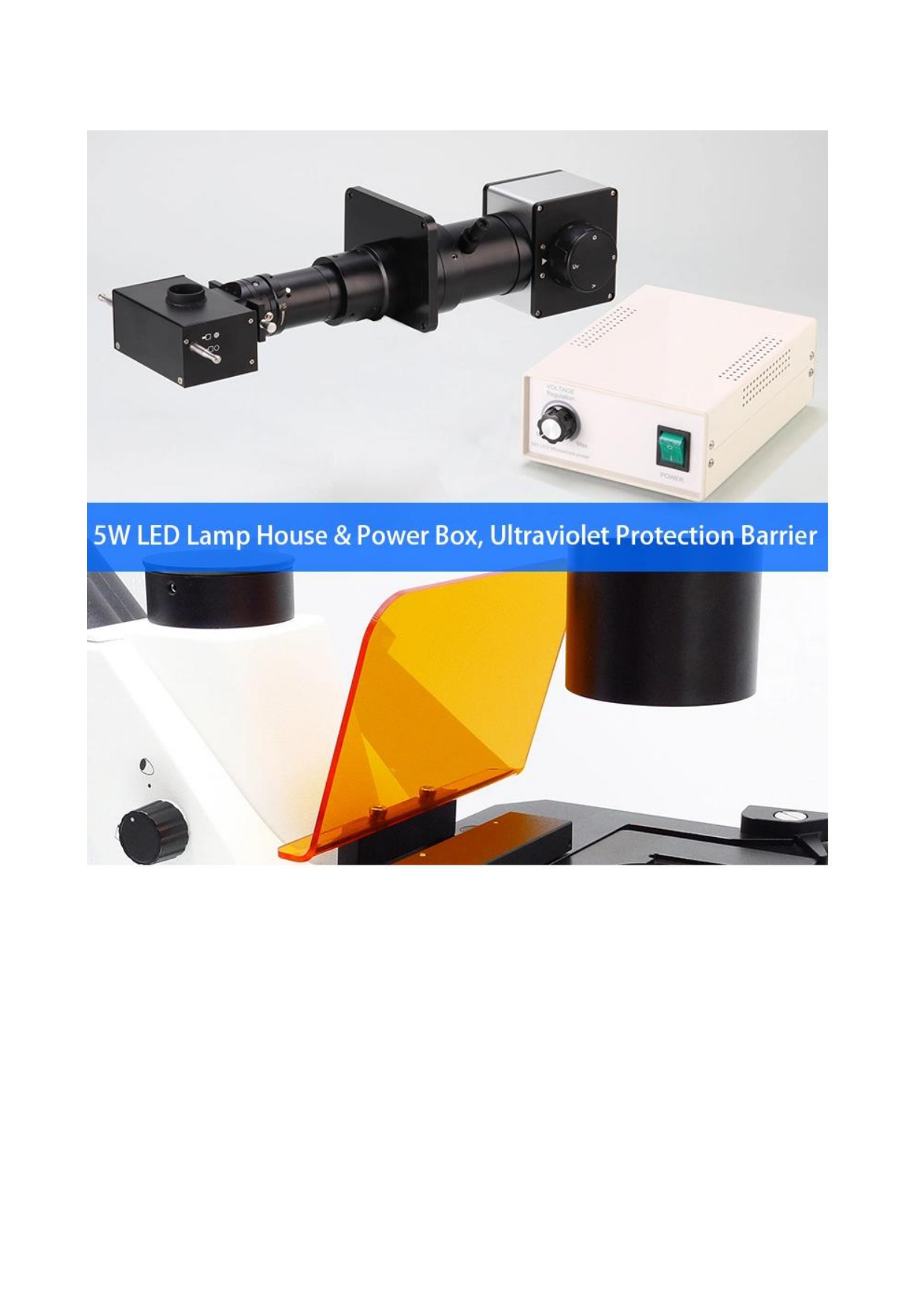

Upgrade From Inverted Microscope With B, G Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B, G Lamp Each 1 pc |
|
|
● |
○ |
|
Upgrade From Inverted Microscope With B, G, V, VU Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp Each 1 pc |
|
|
○ |
● |
|
|
Fluorescent Filter |
Upgrade to Chrome Fluorescent Filters, B,G,V,UV Available |
|
|
|
|
|
Package |
Packing Size: 660mmx590mmx325mm Fluorescence Carton Size 520x470x235mm |
||||
|
Weight |
Gross Weight: 18 kgs, Net Weight: 13.5 kgs |
||||
Note:"●"In Table Is Standard outfits,"○" is Optional Accessories.
