| Technical Specification | |
| Optical System | Infinity color corrected optical system |
| Viewing Head | 45° inclined trinocular head, 360° rotatable, interpupillary range: 50–75 mm, fixed splitting ratio = 5:5 |
| 45° inclined trinocular head, 360° rotatable, interpupillary range: 50–75 mm, splitting ratio R:T = 100:0 or 0:100 | |
| Eyepiece | High eye-point wide field plan eyepiece PL10X/22 mm, with adjustable diopter, micrometer attachable |
| High eye-point wide field plan eyepiece PL15X/16 mm, with adjustable diopter | |
| Objective | Infinity plan achromatic objectives 4X/10X/20X/40X/60X |
| Infinity plan phase contrast objectives 4X/10X/20X/40X | |
| Infinity plan fluorescence objectives 4X/10X/20X/40X/60X | |
| Infinity plan phase contrast and fluorescence objectives 20X/40X | |
| Nosepiece | Quintuple nosepiece |
| Quadruple nosepiece | |
| Frame | Biological frame with coaxial focus system. Coarse range: 9 mm (6.5 mm up / 2.5 mm down). Fine precision: 0.002 mm. Whipper limit and tension adjustment. External wide voltage transformer 100V–240V AC input, 12V5A output. White ECO function. |
| Fluorescent Frame | Fluorescent frame (transflection) with coaxial focus system. Coarse range: 9 mm (6.5 mm up / 2.5 mm down). Fine precision: 0.002 mm. Whipper limit and tension adjustment. |

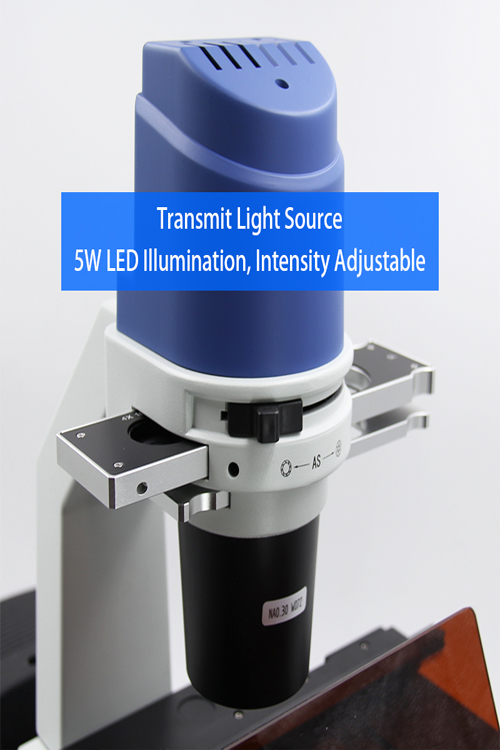

| Transmitted illumination | 4 LED fluorescent filters. External wide voltage transformer 100V–240V input, 12V5A output. 5W LED with light indicator, intensity adjustable. With infrared induction and ECO function. |
| Transmitted light source with cold/warm color options. Cool color temperature 5000K, warm color temperature 3000K. | |
| Fluorescent illumination | Color lighting, 5W LED. Contains three sets of LED light sources of 385 nm, 470 nm, and 560 nm. Equipped with UV1, B1, and G1 fluorescence color filter sets respectively. Preset center; servo motor controls the light source to automatically switch with the color filter set. |

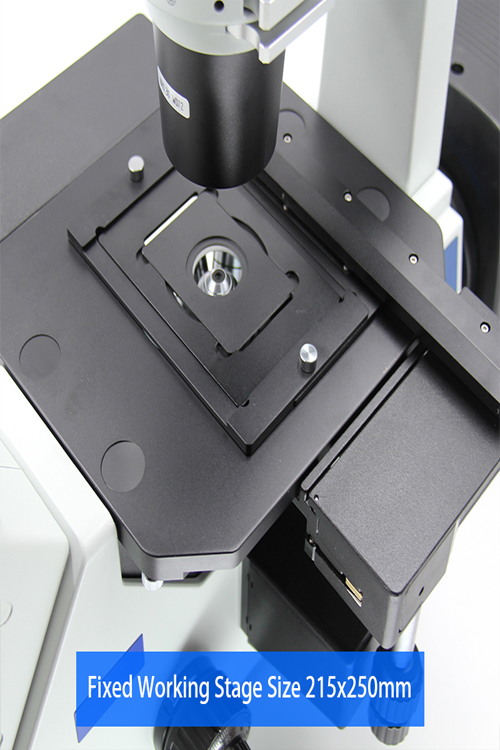

| Stage | 215 × 250 mm fixed stage, mechanical stage attachable. Moving range: 120 mm × 80 mm. Extension plate, slide holder, Petri dish holder, Terasaki holder, metal plate, glass plate. |
| Condenser | NA 0.3 long working distance condenser, demountable. |
| Camera adapter | 0.35X, 0.5X, 0.65X, 1X C-mount adapter |
| Others | Color temperature change filter, green interference filter, infrared eliminate filter |
