| Technical Specification | |
| Optical system | Infinity color corrected optical system |
| Viewing head | Main head: 30° inclined trinocular viewing head, interpupillary distance 50–76 mm, splitting ratio (binocular:trinocular) = 100:0 / 20:80 / 0:100 |
| Sub head: 30° inclined binocular head, interpupillary distance 54–75 mm | |
| 5–35° tilting trinocular head, interpupillary distance 50–76 mm, splitting ratio (binocular:trinocular) = 50:50 / 100:0 / 0:100 | |
| Eyepiece | High eye-point wide field plan eyepiece PLN10X/22 mm, diopter adjustable |
| High eye-point wide field plan eyepiece PLN10X/22 mm with stop screw, diopter adjustable | |
| Objective | Infinity plan semi-apochromatic fluorescent objectives 4X / 10X / 20X / 40X / 100X |
| Universal plan semi-apochromatic objectives 2X / 4X / 10X / 20X / 40X / 60X / 100X | |
| Universal plan semi-apochromatic phase contrast objectives 4X / 10X / 20X / 40X / 60X / 100X | |
| Nosepiece | Quintuple nosepiece with DIC slot |
| Sextuple nosepiece with DIC slot | |
| Septuple nosepiece with DIC slot | |

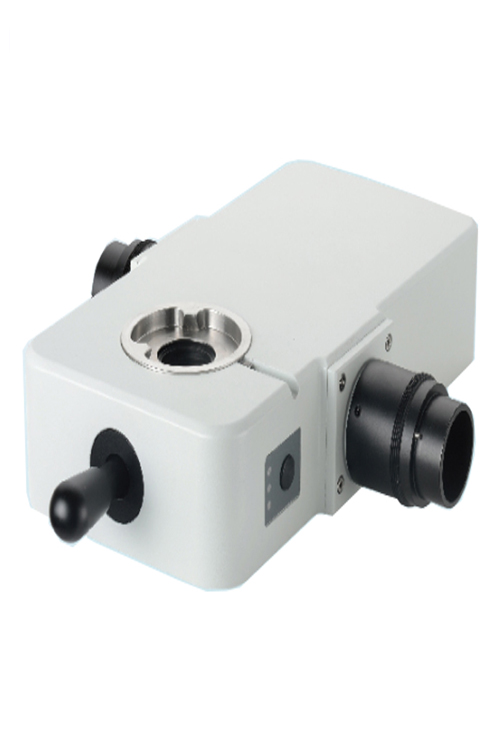

| Middle module | Middle module with LED cursor; three colors (red/green/blue) optional, intensity adjustable |
| Frame | Biological tension frame with low-hand coaxial focusing system and upper limit & tension adjustment. Coarse range: 25 mm; fine precision: 0.001 mm. Built-in 100V–240V wide voltage with digital dimming and intensity set & reset. Built-in LBD/ND6/ND25 filters |
| Stage | 187 mm × 166 mm two-layers mechanical stage, moving range 80 mm × 55 mm, precision 0.1 mm, two-way wire slide rail, knob tension adjustable |
| Condenser | Swing-out achromatic condenser, N.A. 0.9 |
| Universal condenser | |
| Illumination | 12V / 100W halogen lamp, bulb center preset, intensity adjustable |
| Camera adapter | 0.5X, 0.65X, 1X focusing C-mount |
| Other accessory | External transformer, high precision micrometer |
