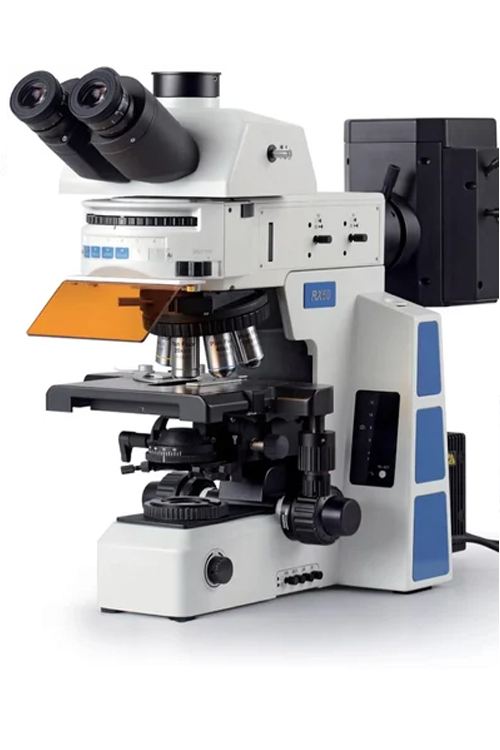

The SLV-61iFL is a top-tier research-grade fluorescent microscope, purpose-built for demanding biological, medical, and materials science applications. Equipped with Semi-Apochromatic optics, Differential Interference Contrast (DIC) capability, and a high-power fluorescence illumination system, this instrument ensures unmatched imaging performance across bright field, phase, fluorescence, and polarization modalities.
Yes I'm Interested DownloadHigh-precision Semi-Apochromatic objectives (4x–100x) deliver flat, high-resolution images across the entire field of view.
Designed for both transmitted and reflected fluorescence applications.
Integrated 6-hole disc fluorescence illuminator with aperture and iris diaphragm.
100W mercury lamp (OSRAM) and digital power box offer stable, bright excitation.
Built-in fluorescence filters (B, G, UV) and attenuation plate for balanced exposure.
Includes UV protection barrier and light shield for safe operation.
Trinocular inverted viewing head with light split ratio options: 100:0, 20:80, or 0:100.
30° inclination and wide interpupillary adjustment (50–76 mm) ensure ergonomic viewing and camera integration.
Coaxial coarse and fine focusing system, with 0.001 mm precision and stop limit.
Large mechanical stage (187×166 mm) with 80×55 mm travel and torque adjustment.
Compatible with various C-mount adapters (0.35x to 1.0x), ideal for high-resolution CCD/CMOS cameras.
Supports camera-based documentation, live imaging, and video analysis.
Supports DIC, Phase Contrast, Dark Field, and Polarization imaging using a universal condenser system.
Exchangeable rings and objectives ensure adaptability across contrast methods.
| Feature | Description |
|---|---|
| Optics | Infinity Optical System, Semi-APO Objectives |
| Objectives | 4x, 10x, 20x, 40x, 100x (Semi-APO Fluorescent) |
| Fluorescence | B, G, UV filters; 100W mercury lamp; 6-hole disc |
| Head Type | Trinocular, Inverted Image, Tiltable |
| Stage Size | 187×166 mm; Travel: 80×55 mm |
| Focusing | Coarse & Fine Focus, 0.001 mm precision |
| Illumination | Transmitted 100W Halogen (Philips 7724) |
| Filters | LBD, ND6, ND25 built-in |
| Power Supply | Built-in Wide Voltage (100–240V) |
| Contrast Modes | Bright Field, Fluorescence, DIC, Phase Contrast, Polarizing, Dark Field |
| Condensers | Swing-out Achromatic + Universal 8-Hole Disc (Optional) |
| Digital Integration | C-Mount Adapters for CCD/CMOS |
| Weight & Build | Research-grade, stable, vibration-resistant base |
