| Dark Field Laboratory Biological Microscope | |
| Optical System | Infinity Plan Optical System |

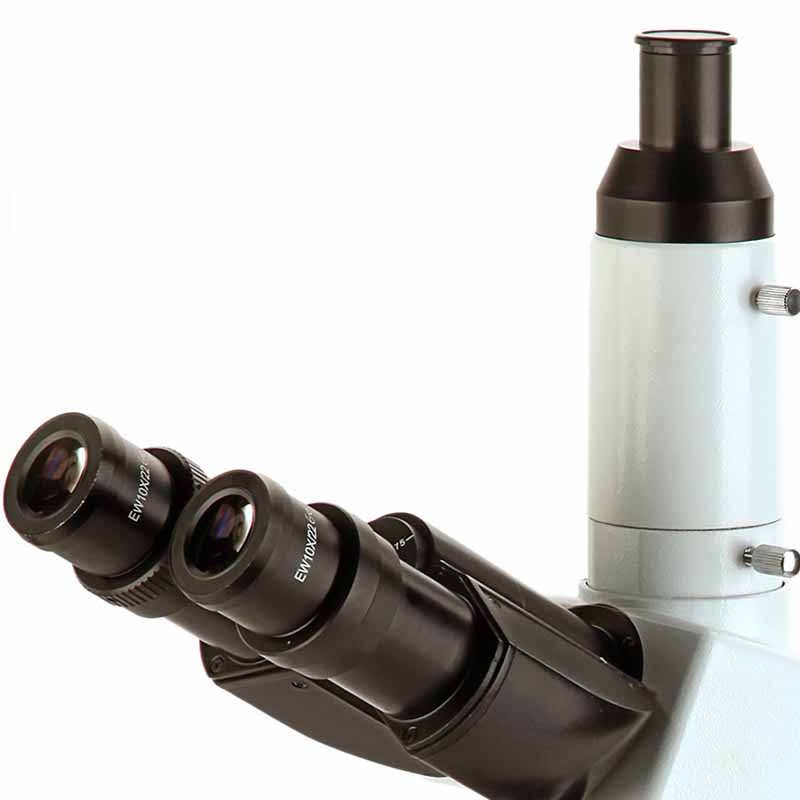

| Head | Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable |
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm |
| Nosepiece | Backward Quintuple Nosepiece, With Slide Slot |
| Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x |
| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm |
| Working Stage | Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm |
| Condenser | Swing Out Condenser N.A.0.9/0.25 |
| Illumination | Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable |
| Filter | Green, Blue |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry, Use With 40x Or Lower Magnification Objective |
| Adapter | Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm |
| Optional Accessories | |
| Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm |
| Upgrade to Tilting Binocular Head 5°~35° | |
| Upgrade to Tilting Trinocular Head 5°~35° | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm |
| Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm | |
| Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm | |
| Objective | Infinity Plan Achromatic Objective 20x |
| Infinity Plan Achromatic Objective 60x | |
| Nosepiece | Sextuple Nosepiece |
| Dark Field | Dark Field Condenser, N.A. 1.25~1.36, Immersion, Use With 100x Objective |
| Dark Field Objective, Infinity Plan 100x(Oil) | |
| Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm | |
| Illumination | Upgrade To Halogen Lamp 24V50W, For Better Dark View |
| Upgrade To Halogen Lamp 24V100W, For Better Dark View | |
| Adapter | 0.45x C-Mount |
