Equipped with a Trinocular Head and WF 10X/22 mm wide-field eyepieces.
30° inclined viewing head, with diopter adjustment on both eyepiece tubes.
Designed for professional and research applications requiring high clarity and precise control.
| Component | Specification |
|---|---|
| Model No. | SLV-23 |
| Optical System | Infinity Optical System |
| Viewing Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48–75 mm, Dioptre Adjustable |
| Eyepiece | Extra Wide Field (EWF) 10X/22 mm with Dioptre Adjustment |

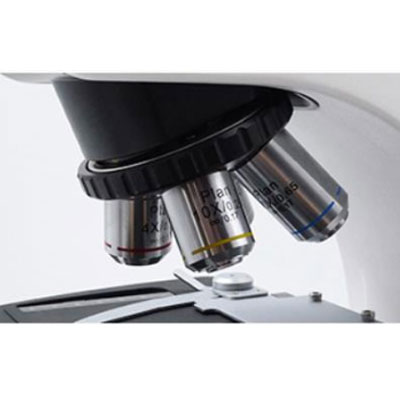

| Nosepiece | Quadruple, Reversed Type with Positive Click Stops |
| Objectives | Infinity Plan Objectives: 4X, 10X, 40X (Spring-Loaded), 100X (Oil) |

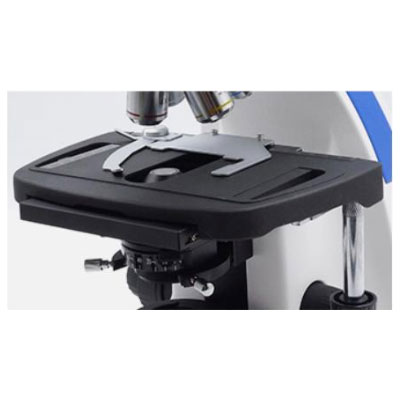

| Specimen Stage | Large Double Layer Mechanical Stage 216 × 150 mm, Graphite Surface, Travel 75 × 55 mm |
| Focusing | Coaxial Coarse and Fine Focus Fine Division: 0.002 mm Coarse Stroke: 37.7 mm/Rotation Total Travel: 24 mm |
| Condenser | Abbe Condenser, N.A. 1.25 |
| Illumination | External LED Illumination, 3W |
| Adapter | C-Mount 0.5× / 1.0× |
| Optional Accessories | Camera Attachment Phase Contrast Dark Field Fluorescent Illumination Pointer |
