Zoom Stereo Microscope, 0.8~8x, Trinocular, Square Stand Up/Bottom LED
• Zoom Stereo 0.8x~8.0x, Total Magnification Up To 4x~480x With Auxiliary Lens & Eyepiece
• Super Wide Field Plan Eyepiece WF10x/22mm Dioptre Adjustable, WF15x, WF20x Optional
• PLAN Objective Lens 0.5x, 1x, 2.0x Optional To Enlarge Magnification and Working Distance
• Large Track Stand With Up/Bottom LED Light In Square & Fan Shape For Choice
| Item | Description | SLV-SZ68-T06 | SLV-SZ68-T08 | SLV-SZ68-T10 |
|---|---|---|---|---|
| Optical System | Parallel Optical System, Module Design to Add Function Easily | ● | ● | ● |
| Head | Tilting Head 0°–35° Viewing Angle Adjustable for User | ● | ● | ● |
| Eyepiece | Extra Wide Field Eyepiece EWF 10× / 22 mm | ● | ● | ● |
| Zoom Body | 0.8×–5.0×, Zoom Ratio 1:6 | ● | – | – |
| 0.8×–6.4×, Zoom Ratio 1:8 | – | ● | – | |
| 0.8×–8.0×, Zoom Ratio 1:10 | – | – | ● | |
| Auxiliary Lens | Plan Achromatic Lens 1.0× | ● | ● | ● |
| Working Distance | 78 mm | ● | ● | ● |
| Focusing | Coarse Focusing Knob, Range 105 mm | ● | ● | – |
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015 mm, Coarse Stroke 38.4 mm/Rotation, Fine Stroke 1.5 mm/Rotation, Moving Range 105 mm, Focusing Mount Inner Dia. 76 mm | – | – | ● | |
| Illumination | Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours | ● | ● | ● |
| Eyepiece |
|---|
| WF 15× / 16 mm |
| WF 20× / 12 mm |
| WF 30× |
| Auxiliary Lens |
|---|
| Plan Apochromatic Lens 0.5× |
| Plan Achromatic Lens 1.0× |
| Plan Achromatic Lens 2.0× |
| Achromatic Lens 0.3× |
| Achromatic Lens 0.5× |
| Illumination |
|---|
| Coaxial Illumination Set |
| Cold Light Power Supplier |
| Dual Light Guide |
| Coaxial Episcopic Illuminator |
| Iris Diaphragm |
| Working Stage |
|---|
| Temperature Control Stage |
| Movable Working Stage |
| Stand |
|---|
| Universal Table Stand |
| Track Stand, Transmit & Reflect Light Source with Coarse & Fine Focusing (Optional) |
| Type | Description |
|---|---|

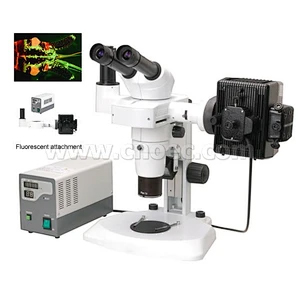

| Fluorescent | EPI-Fluorescent Attachment for Stereo Microscope |
| Dark Field | Dark Field Attachment for Stereo Microscope |
| Polarizing | Simple Polarizing Attachment for Stereo Microscope |
| Adapter |
|---|

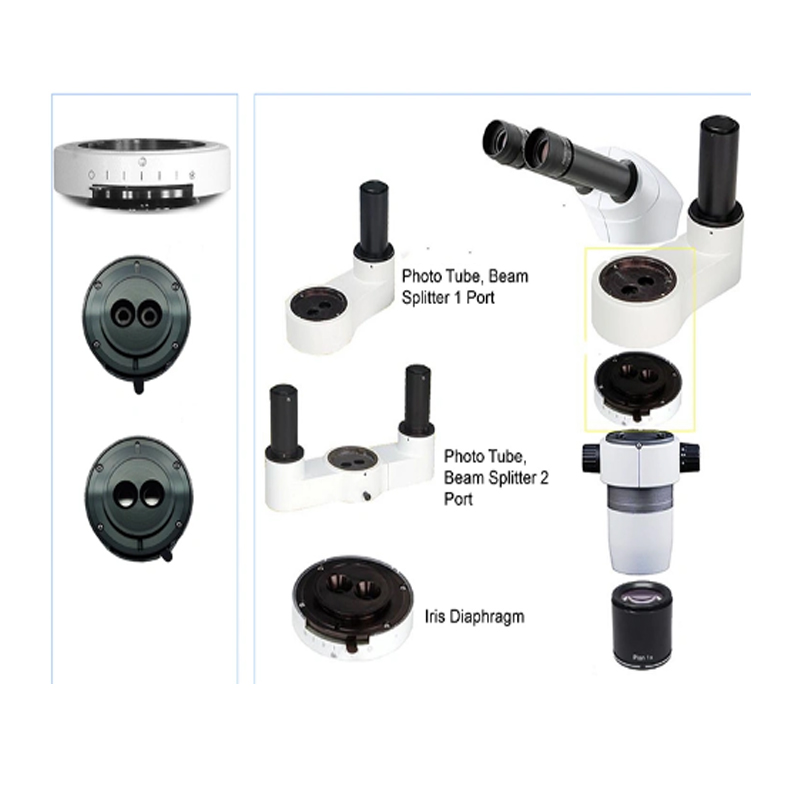

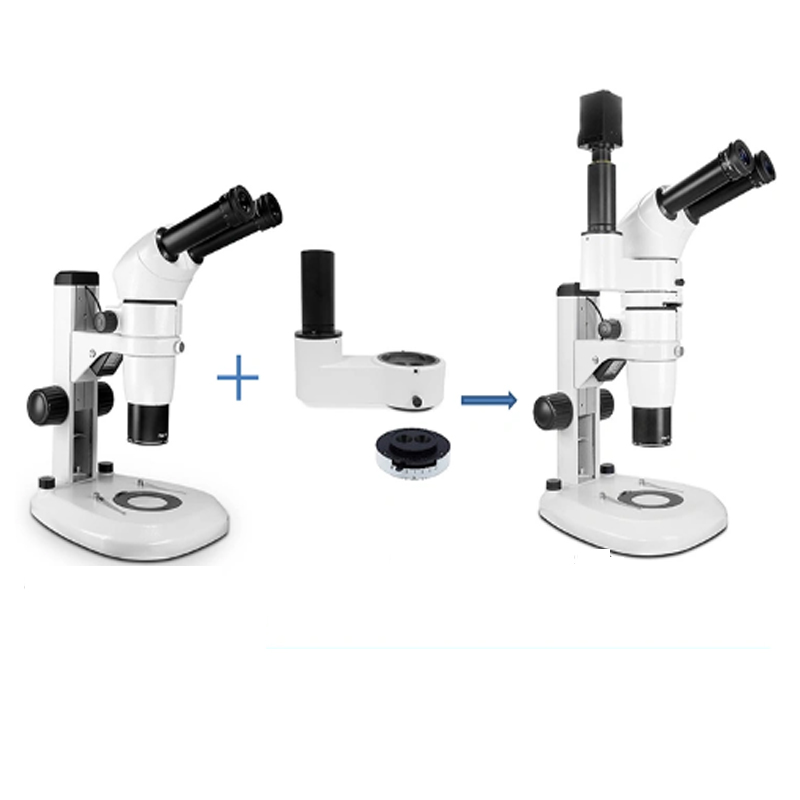

| Photo Tube, Beamsplitter – 1 Port |
| Photo Tube, Beamsplitter – 2 Port |
| Photo Adapter 2.0× for Nikon or Canon Digital SLR Camera |
| C-mount 0.5× |
| C-mount 1.0× |
